Poggi Bevel Gearbox 5000

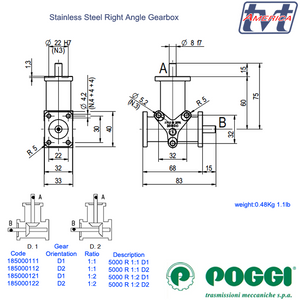

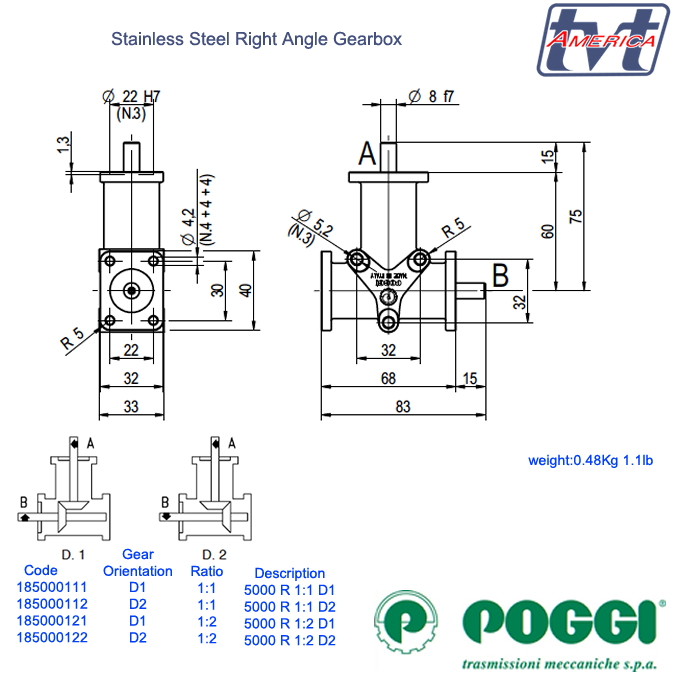

Poggi® Right angle gearbox 5000 Series. Stainless steel housing featuring fully machined flanges with threaded holes.  Hardened, tempered and ground stainless steel shafts supported by electric motor grade deep groove ball bearings, Gleason spiral bevel gears made of hardened, tempered and ground alloy steel for silent and efficient operation in either direction. Synthetic lubricated and maintenance free for life fit with spring lip oil seals for clean leak free operation, High Temperature Viton® seals available on request.  Designed for minimal and repeatable backlash, 15 to 30 arc minutes standard, reduced backlash available on request.  Operational temperature of 0º to 170ºF (-18º to 80ªC).

* Prices are 1 piece User Pricing.  For OEM Production or Stocking Distributor discounts please inquire with sales@tvtamerica.com.

Spec sheet: 185000111

Spec sheet: 185000112

Spec sheet: 185000121

Spec sheet: 185000122
