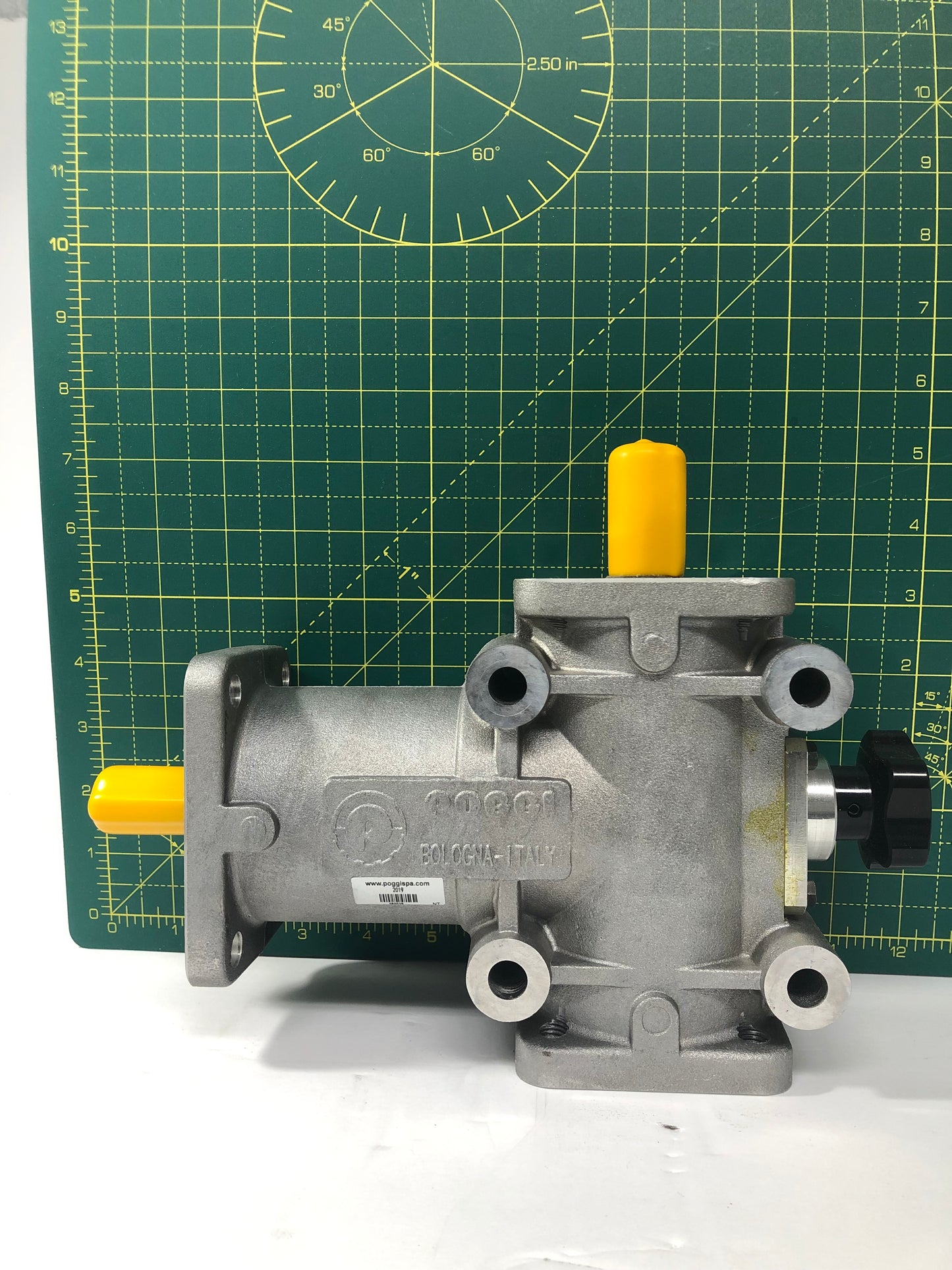

Poggi 2019 Right Angle Reversing gearbox
Poggi 2019 Right Angle Reversing gearbox
Poggi® Right Angle Reversing gearbox 2019 Series. 1:1 ratio with one output shaft and the ability to select output rotation via simple to use selector. Aluminum alloy housing featuring fully machined flanges with threaded holes. Hardened, tempered and ground alloy steel shafts supported by electric motor grade deep groove ball bearings, Gleason spiral bevel gears made of hardened, tempered and ground alloy steel for silent and efficient operation in either direction. Synthetic lubricated and maintenance free for life fit with spring lip oil seals for clean leak free operation, High Temperature Viton® seals available on request. Designed for minimal and repeatable backlash, 15 to 30 arc minutes standard, reduced backlash available on request. Operational temperature of 0º to 170ºF (-18º to 80ªC).
Spec sheet: 182019
