SFK40P 15 71B14 B3 H19

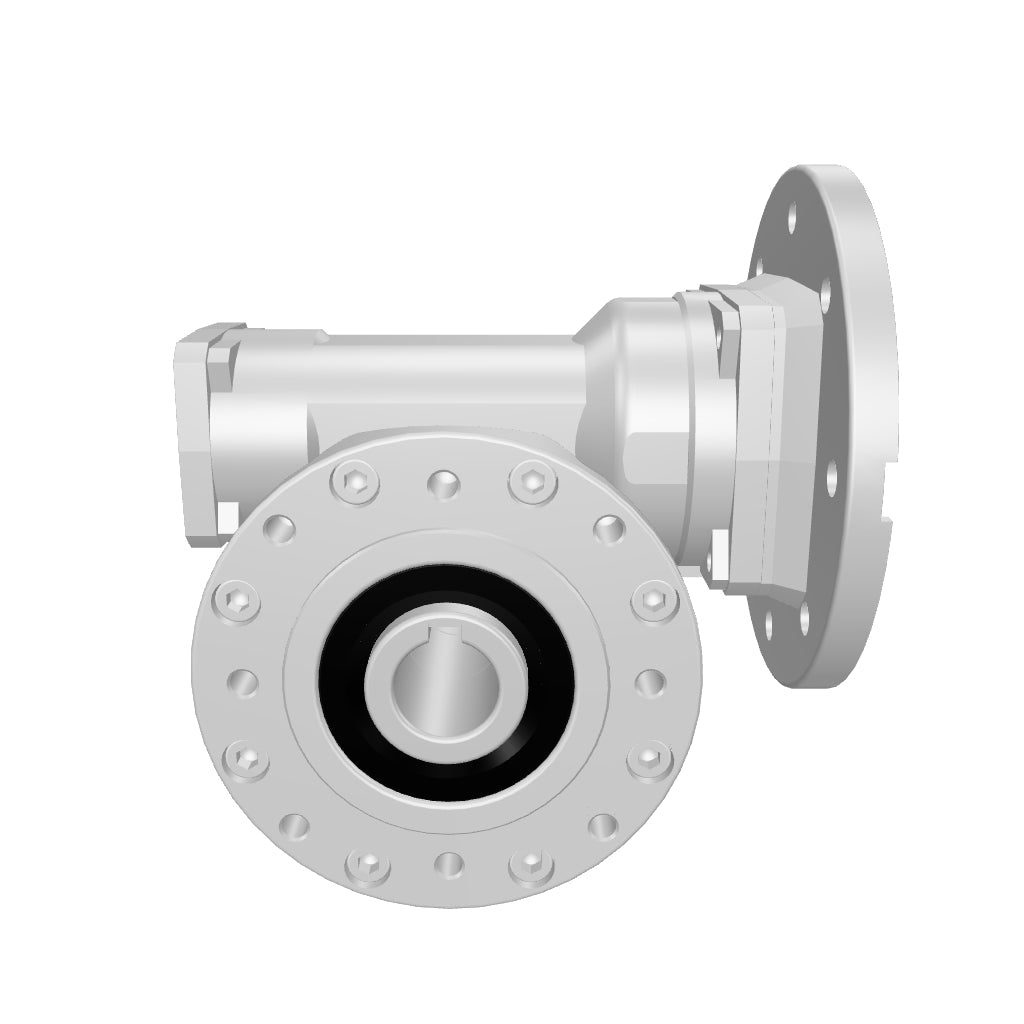

Tramec® SFK Interchange Series Compact Worm-Gear Reducer

Size: 40mm - center distance between center of bore and center of worm.

Form: "P" shaft mount - no feet, no output flange(s), torque arm ready.  Pilot 60mm h8, bolt circle 83mm, 4 M6x10 tapped holes.

Ratio: 1/15  15 turns input for 1 turn output.

Input: IEC 71b14 motor adapter, 14mm input quill, 70mm pilot, 85mm bolt circle, 105mm outside diameter.

Orientation: B3 - Horizontal Input & Output, worm over gear.

Output: Hollow Bore 19mm, H7 tolerance, with keyway.

Lubrication: Shell Omala S4 WE 320 High Performance Synthetic oil, lubricated for life.  Shell® Product Video, Shell® Omala Product Range brochure.

Specification Sheet: PDF Download in new window.

3D CAD: .STP file

Allow 5 weeks ARO for shipment from USA Warehouse.
