SFK50FP2 25 71b5 B3 H24

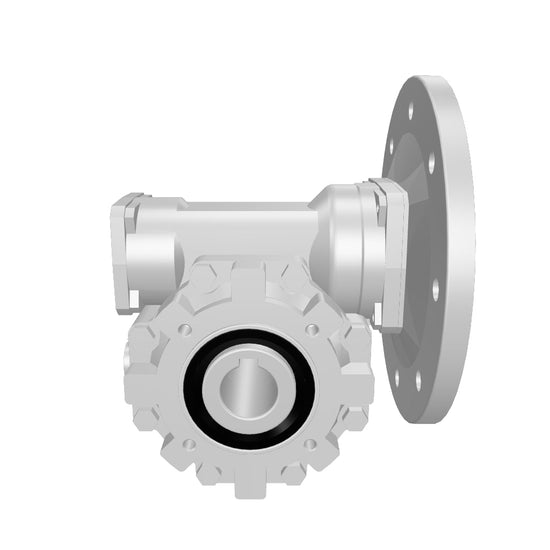

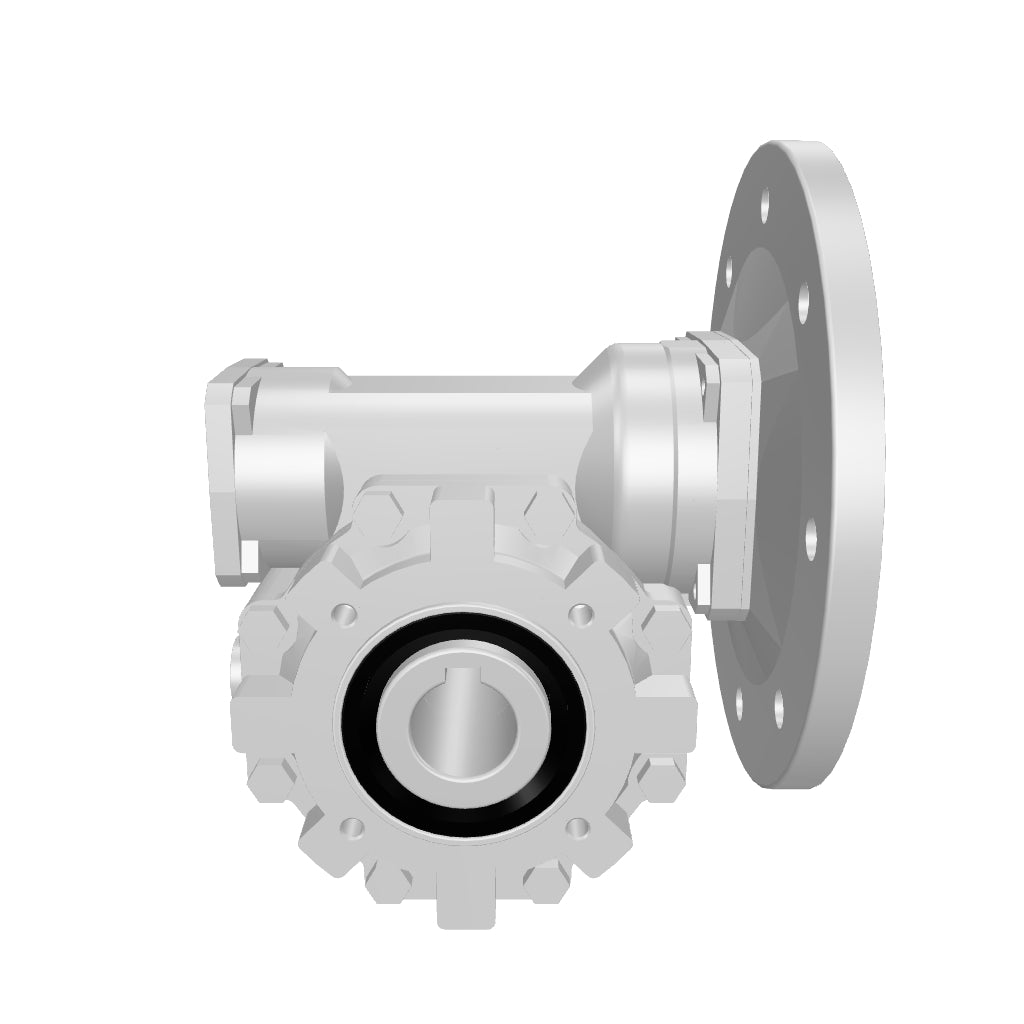

TVT® SFK Series Compact Interchange Worm-Gear reducer

• Size: 50mm - center of worm to center of worm gear
• Form: FP2 - Output covers designed to replace Siti MI50FP perfectly.
• Ratio: 1/25 - 25 turns of input for one turn of output shaft.
• Motor Adapter: IEC 71b5 - 160mm flange with 14mm input quill.
• Orientation: B3 - Horizontal input & output, worm over gear.
• Output Bore: 24mm H7 Hollow bore with keyway.

Interchange: SITI CODE: 60063805   MI 50 FP 25/1 PAM 14/160 lubricated for life.

CAD FILE: .STP

SPECIFICATION SHEET: .PDF
