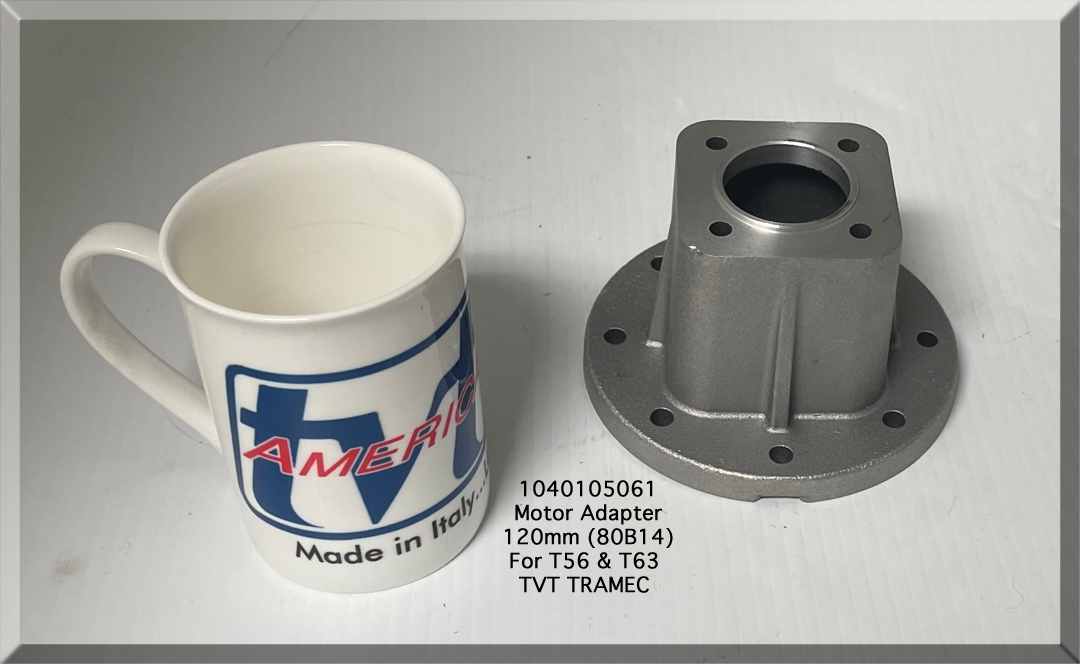

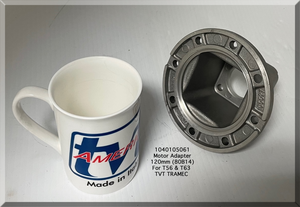

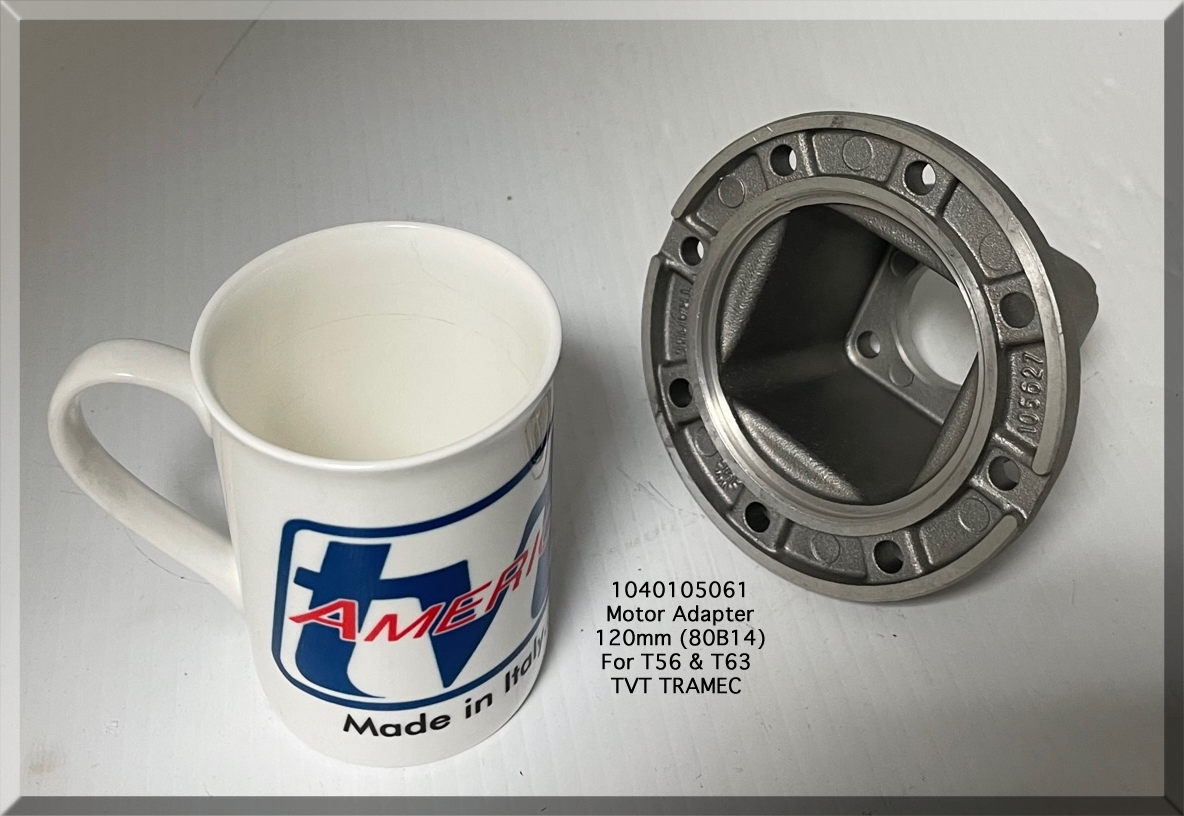

T56/T63 80B14 "F" type motor adapter flange

Tramec part# 1040105061

Die-cast aluminum motor adapter flange.

For T56 and T63 Bevel helical speed reducers.  Type TF56 or TF63

120mm diameter, 100mm bolt circle, 80mm motor pilot.  Standard IEC 80 B14

100% Designed & Manufactured in ITALY.

* Campana #120 PAM 80 B14 T56/T63 Input Flange 120
