TVT America
TFP160MB2
TFP160MB2
Regular price
$2,869.77 USD
Regular price
$5,740.00 USD
Sale price
$2,869.77 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MT TFP Series High Performance 3phase AC Brake motor | |||
IEC 160mb 2pole 15Kw 230∆/400Y Volts/50hz, 480∆/820Y Volts 60Hz 1.2 Service factor | |||
Ingress Protection 5 Dust, 4 Solids, Class F Insulation, S1 Continuous Duty | |||
PTC Thermistor thermal protectors in stator windings. 3ph AC brake Standard 230∆/400Y-Volts 50Hz, 277∆/480 Volts 60Hz. 24Vdc & 103Vdc brakes optional. |
|||
Die-cast Aluminum Housing Polyester Epoxy Painted RAL 9006 White Aluminum for superior corrosion protection. | |||
Pressed Steel brake Cover Polyester Epoxy Painted RAL 5010 TVT Blue. | |||
Double Terminal Box, rotatable at 90º intervals, for convenient wiring and Protection IP56 | |||
UL/CSA/CE listed, ATEX Ex 2-22 3G/3D certified. | |||
"Made in Italy… Loved in America"® |
Share

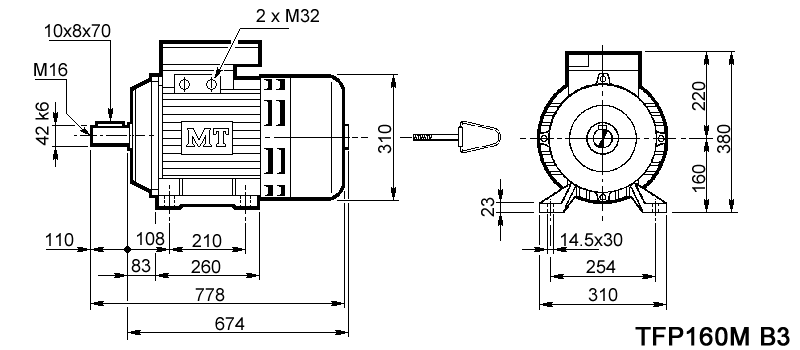

![TFP160MB2](http://www.tvtamerica.net/cdn/shop/products/TFP160m-B3_1fd570fe-f70d-4c5f-98c7-638930a48d04.png?v=1663192244&width=1445)

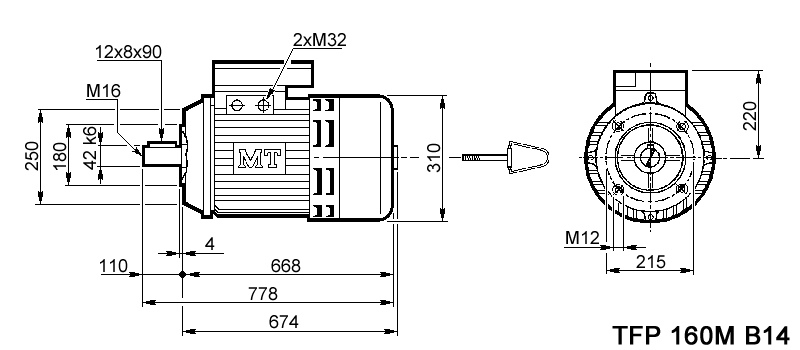

![TFP160MB2](http://www.tvtamerica.net/cdn/shop/products/TFP160MB14_0d3a9cd9-ab4c-45e8-9230-170661fc73f4.png?v=1663192194&width=1445)

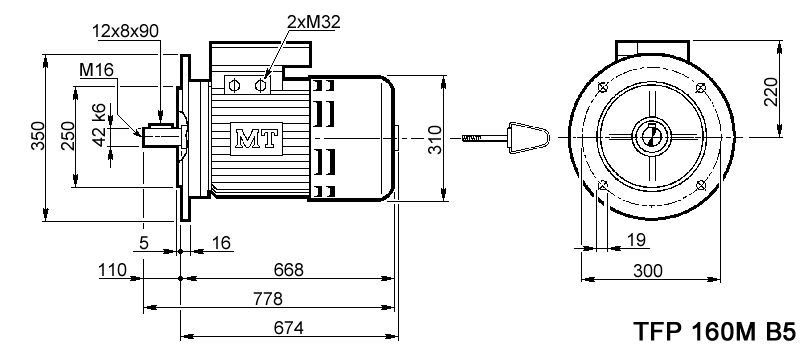

![TFP160MB2](http://www.tvtamerica.net/cdn/shop/products/TFP160MB5_d921cbc1-63a6-4eca-9350-5e8b1a5c33a4.png?v=1663192246&width=1445)
