| MT TN Series 3phase AC motor |

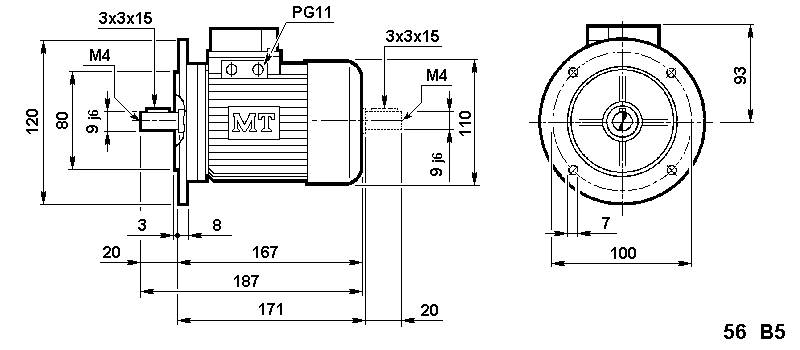

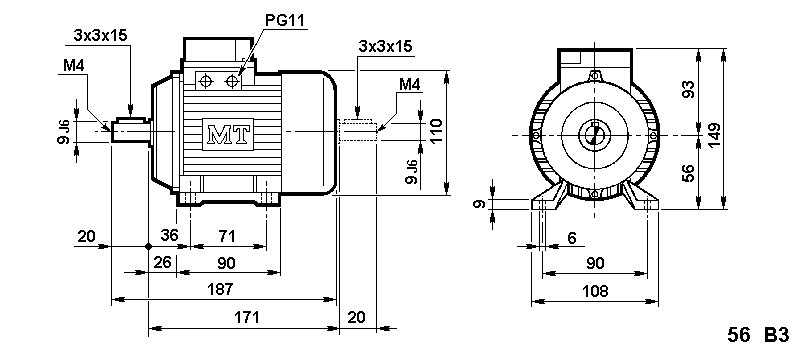

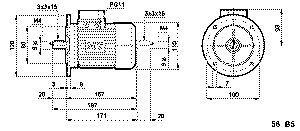

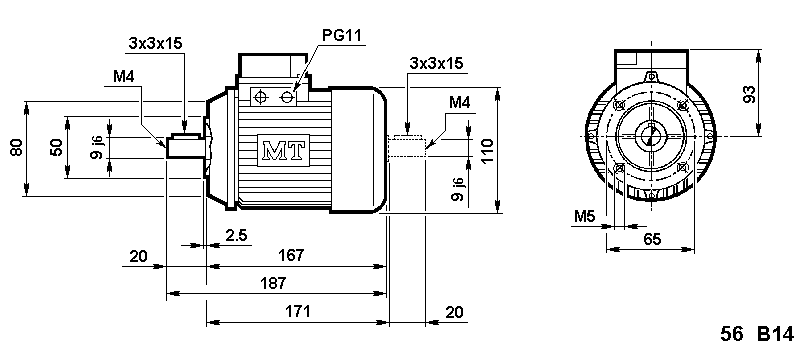

| IEC 56b 4pole 0.09Kw 200YY/400Y Volts/50hz, 230YY/460Y Volts 60Hz 1.2 Service factor |
| Ingress Protection 5 Dust, 4 Solids, Class F Insulation, S1 Continuous Duty |
|
|
| Die-cast Aluminum Housing Polyester Epoxy Painted RAL 9006 White Aluminum for superior corrosion protection. |
| Pressed Steel brake Cover Polyester Epoxy Painted RAL 5010 TVT Blue. |
| Double Terminal Box, rotatable at 90º intervals, for convenient wiring and Protection IP56 |
| UL/CSA/CE listed, ATEX Ex 2-22 3G/3D certified. |
| "Made in Italy… Loved in America"® |
