Tramec X - Universal Worm Gear

Series: X

Motor Input: C (Close Coupled)

Size: 50

Ratio: 5/1

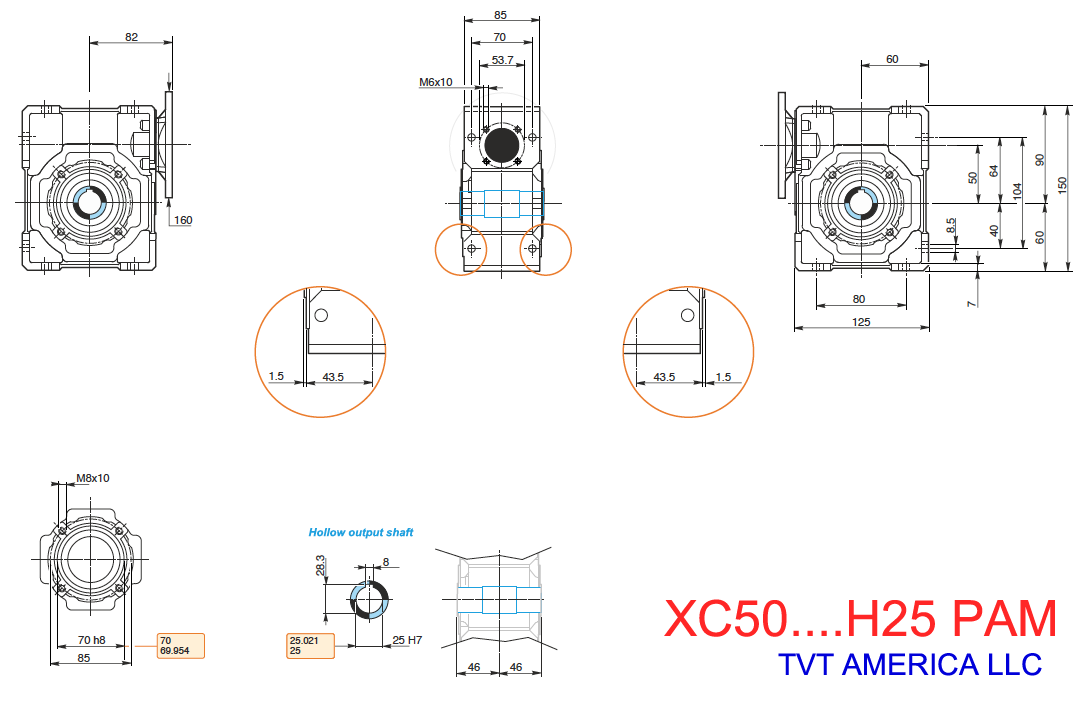

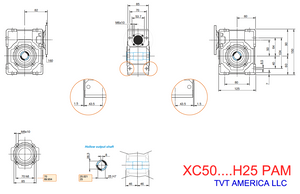

Output: 25mm (Hollow Bore)

Motor Input: 19mm (B14 or B5 options on checkout).

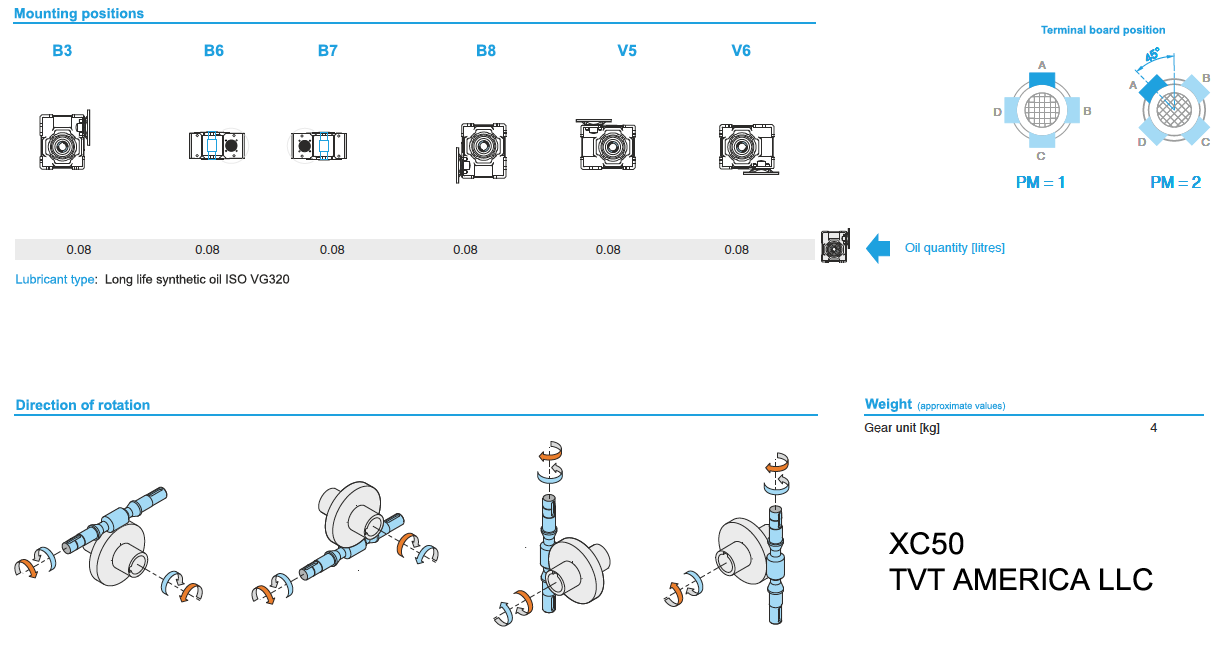

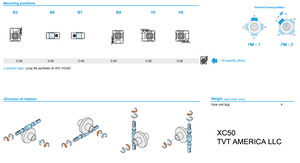

Mounting Position:  B3 (Horizontal)

Rated: 2.7 kw (3.6hp) input at 1800 rpm, 44 Nm (391 in-lbs) output torque.

OHL: 1400 Newton standard, 4000 Newton (with Tapered roller bearings option).

Maintenance Free: Shell® Omala S4 320 full synthetic.
