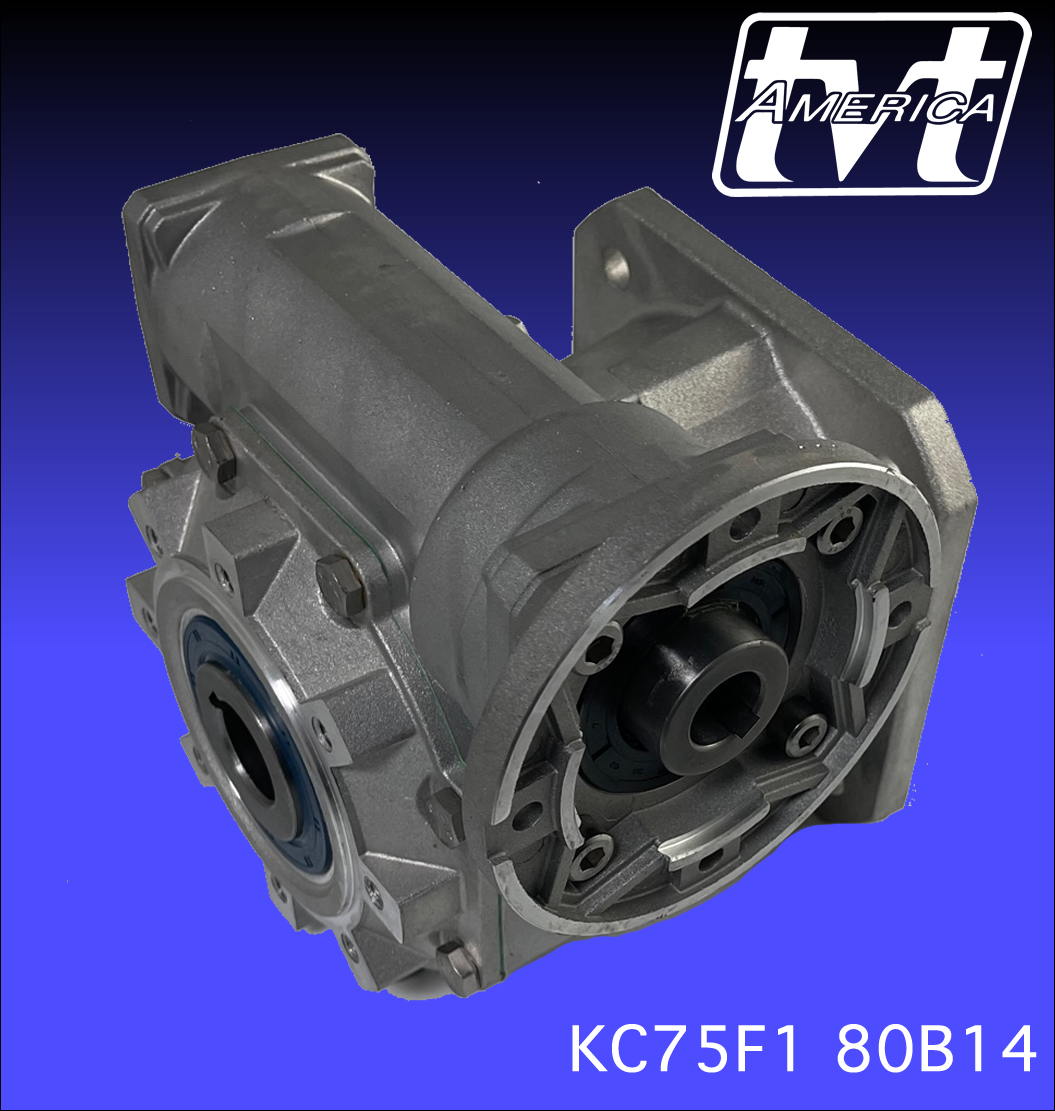

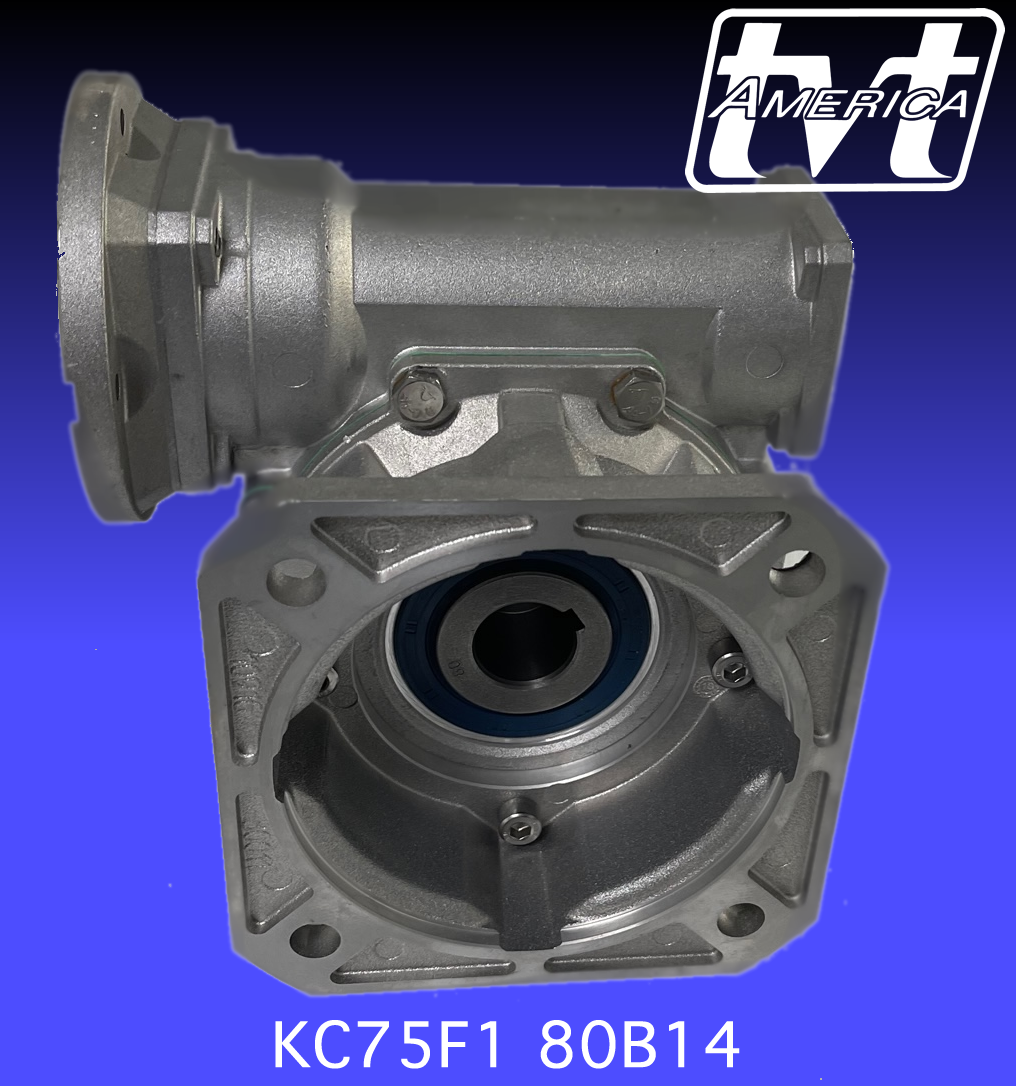

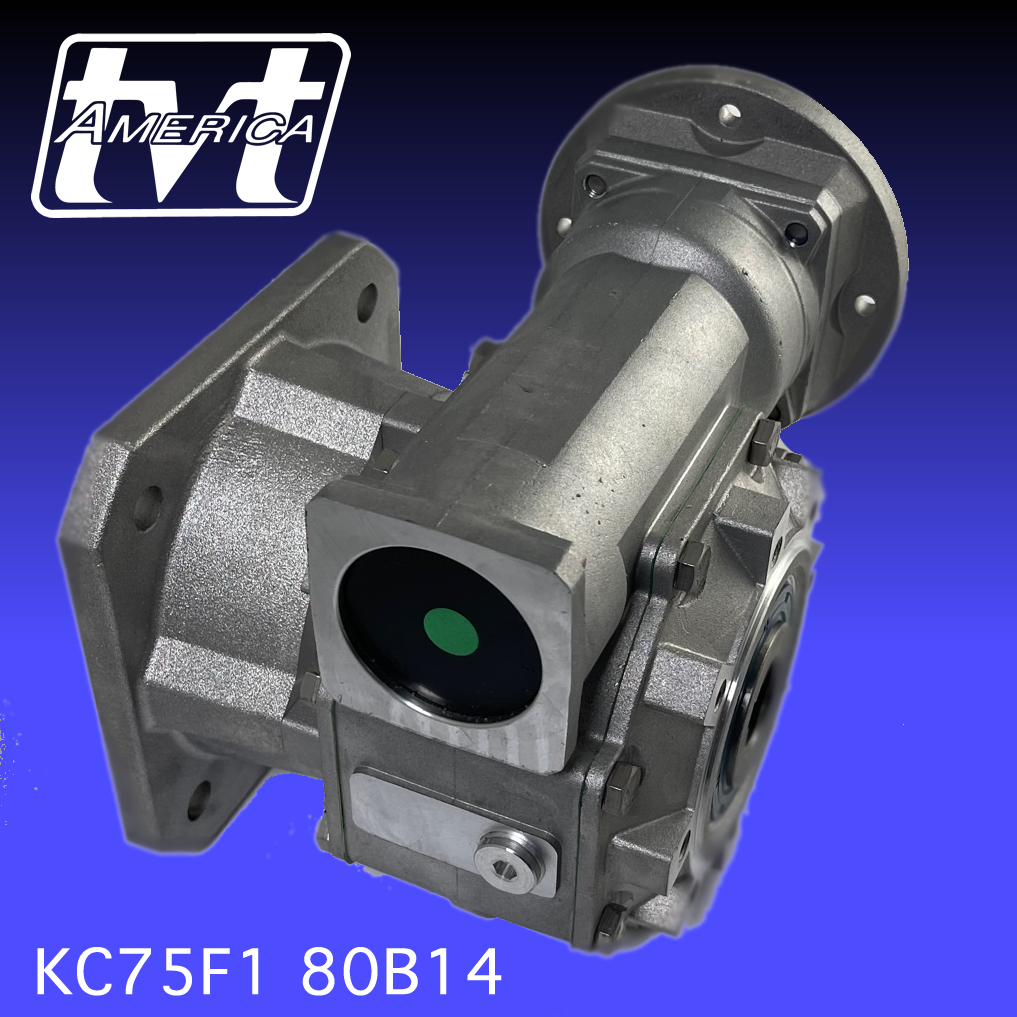

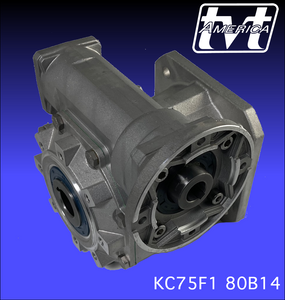

TVT compact worm-gear speed reducer designed for lifting applications. Features:
- Stainless steel hardware (INOX)
- Vacuum Die-cast Alloy Aluminum Gear-case
- Specially formulated Shell Omala S4 WE 680 synthetic - maintenance free for life.
- Dual input seals - leak free protection.
- Fully Encased Nitral Double lip output seals.
- Designed to suit worm gear with tight shimming specific for lifting applications.
- IEC 80B14 compact flange input.
- 28mm H7 Hollow bore with keyway output.
- F1 flange kit for left or right output mounting.
- Vent free, sealed for life, maintenance free design.
- Standard 1/80 reduction ratio. Optional made to order 1/65 and 1/100.
100% Made In ITALY by TVT GROUP
NEMA 56C, 143-145TC Optionally available made to order. 1.250" Output bore optional, made to order. Steel-IT® Corrosion Resistant Paint Optional.
