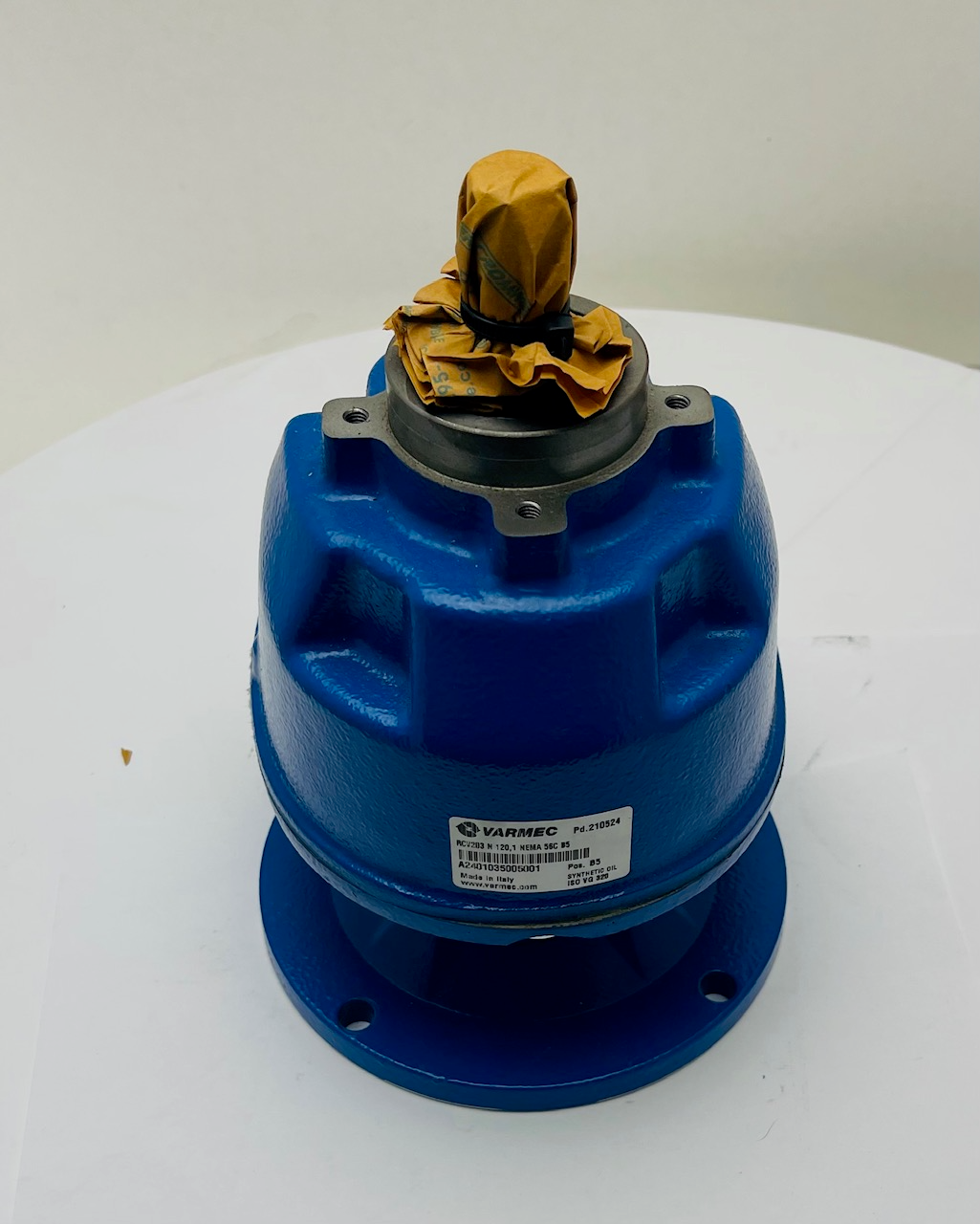

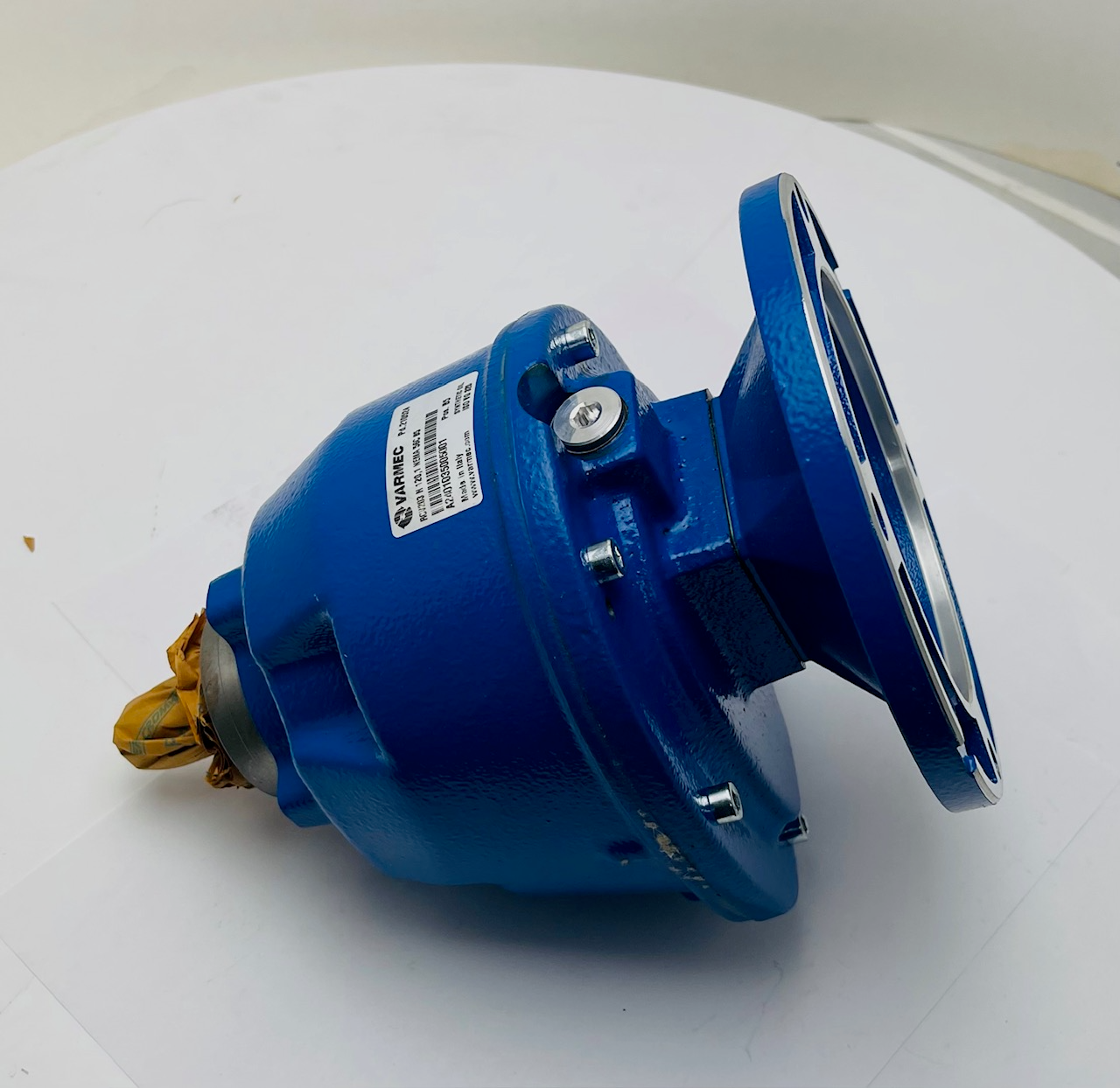

RCV 203 N 120.1 NEMA 56C D=19.05mm

Concentric Helical Gear Reducer:

Size 20, with 3 stages of reduction

Ratio: 1/120.1

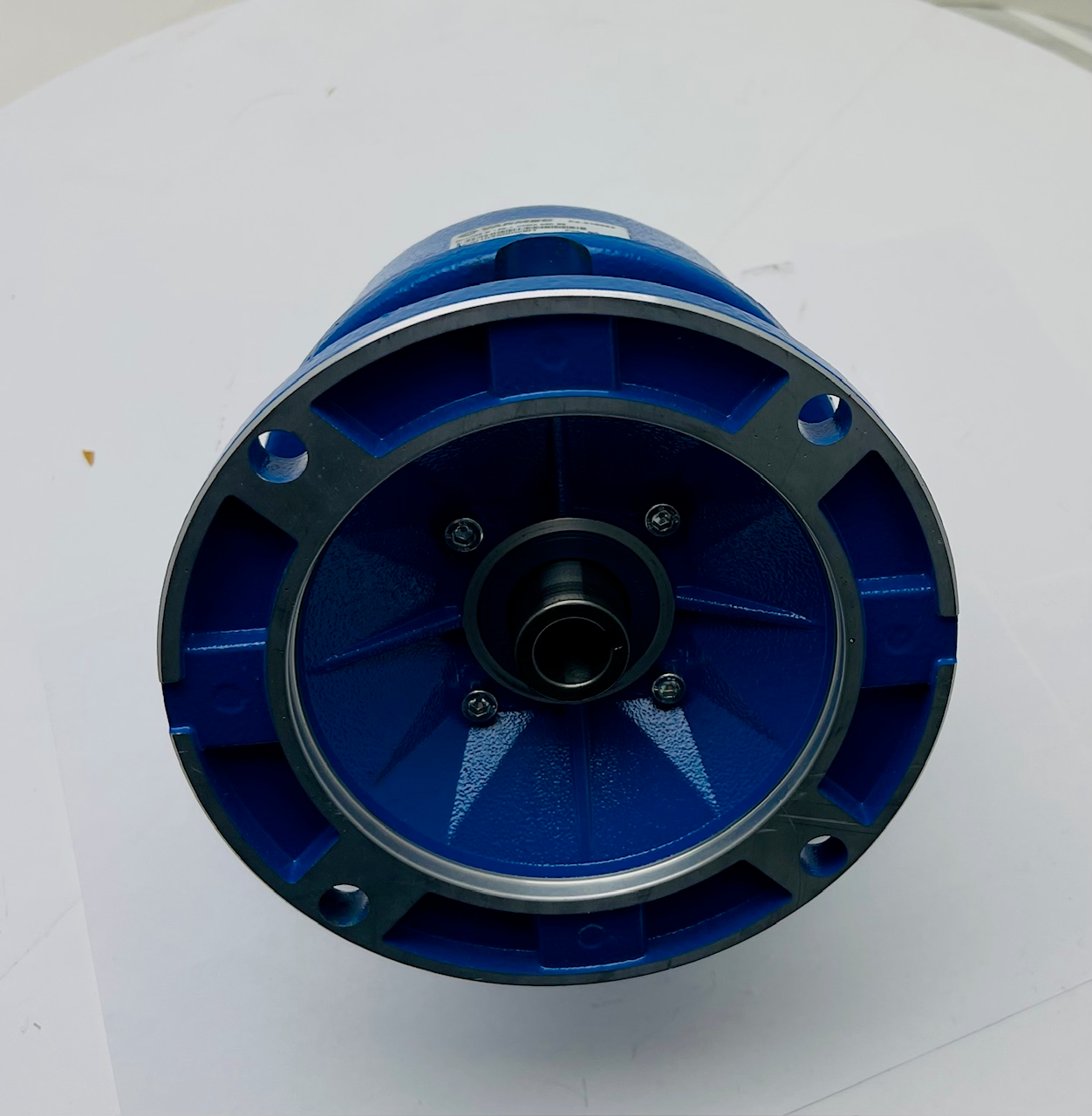

Input: Motor Adapter "C" closed coupled NEMA 56C

Output: 0.750" diameter solid shaft (19.05mm)  x 1.574" (40mm) long.

Mounting form: "N" Face Mounted

Housing Material: Engineering Cast Iron, Polyester Epoxy Finished inside & out RAL 5010 TVT Blue before machining & assembly.

Lubrication: Shell Omala S4 WE 320 Synthetic lubricated for life

Orientation: B3 Horizontal input/output, vent free.

RCV 203N i=120.1 NEMA 56C D=0.750" B3

100% Made in Italy

* Spec Sheet w/dimensions & Performance

* CAD 3D (.stp)

* Service Manuel
