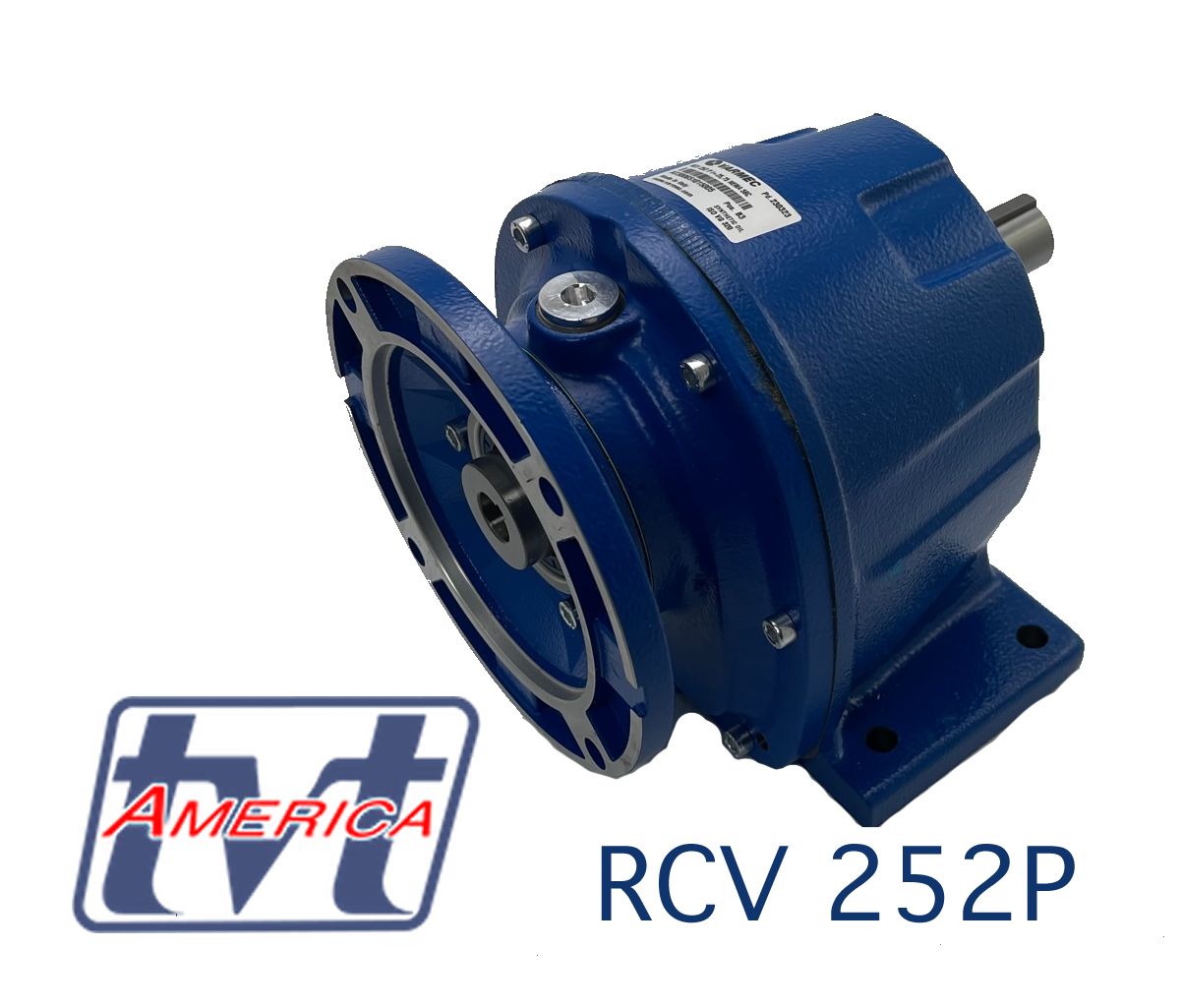

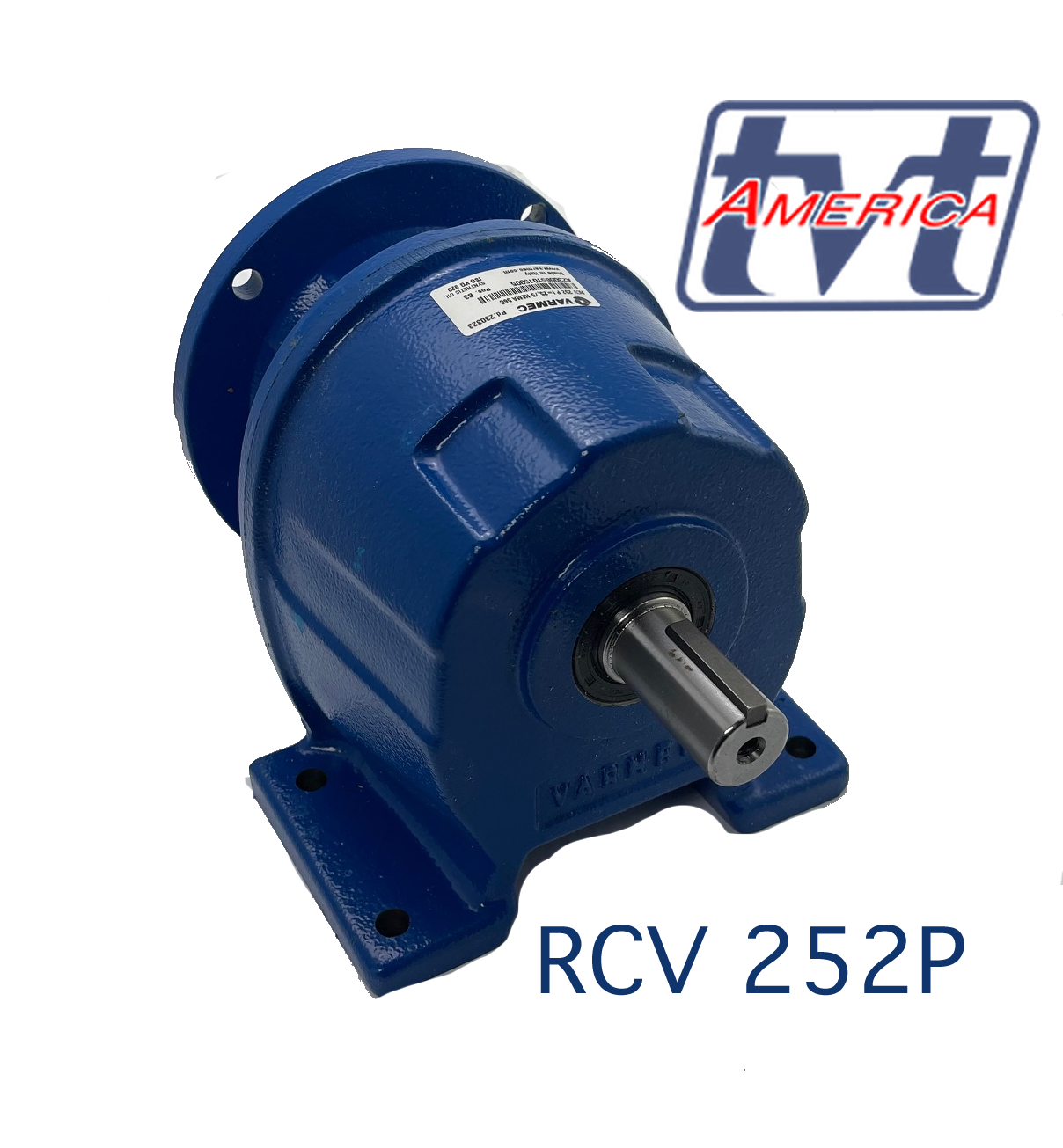

VARMEC RCV 252 P 25.75 NEMA 56C

Concentric Helical Gear Reducer:

Size 25, with 2 stages of reduction

Ratio: 25.75

Input: Motor Adapter "C" closed coupled NEMA 56C

Output: 1.000" diameter solid shaft x 1.969" long.  0.250" key (included) with drilled & tapped end of shaft 5/6"-18

Mounting form: "P" Foot Mounted

Housing Material: Engineering Cast Iron, Polyester Epoxy Finished inside & out RAL 5010 TVT Blue before machining & assembly.

Lubrication: Shell Omala S4 WE 320 Synthetic lubricated for life

Orientation: B3 Horizontal input/output, vent free.

RCV 252 PN i=25.75 NEMA 56C D=1.00" B3

100% Made in Italy

* Spec Sheet w/dimensions & Performance

* CAD 3D (.stp)  2D (.dxf)

* Service Manuel
