VIS 213-5

TVT VIS NEMA SuperDuty Double C-face Brakes

- Water & Dust Resistant IP66 Standard

- NEMA 4

- CSAus Class II, Division 2, Groups F and G.

- 200 to 500Vac input voltage standard, 24Vdc optional MTO.

- Strong & Silent operation

- High Strength Engineering Cast Iron Construction

- Superior to competitors.

- Large brake surface area for long life and high torque ratings

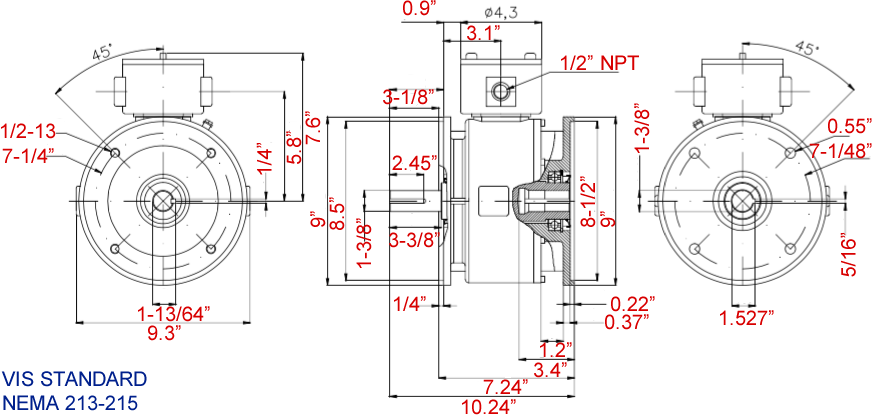

NEMA 213-215 Input & Output

Max power: 70 Watts

Fast Response: 80 milliseconds close, 70 milliseconds open.

710 in-lbs stopping & holding torque.

* INQUIRE for Distributor Opportunities & OEM Volume prices.
