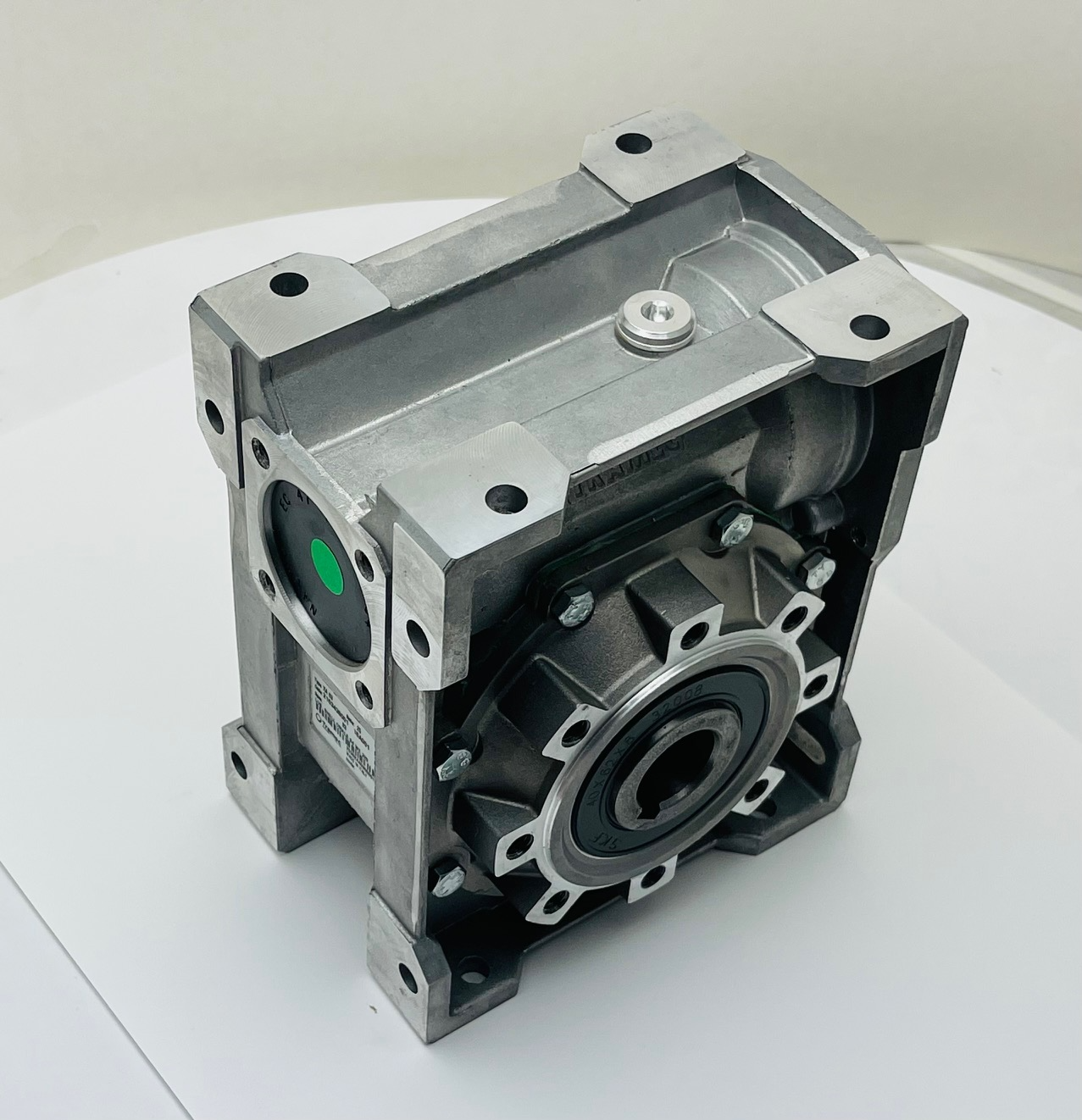

TVT® X series Universal Worm-Gear Reducer

  • A - Shaft input.  19mm j6 tolerance x 30mm, M8x20 tapped end, 6mm seated key.
  • 63mm - Size, distance from center of worm wheel bore to center of worm.
  • Ratio - 5, 10, 15, 20, 25, 30, 40, 50, 65, 80, 100 to 1 ratios standard.
  • H25 - Output Bore 25mm, to H7 ground tolerance, hollow bore with 8mm wide keyway.
  • Orientation - Universal orientation B3, B6, B8, V5, V6, B7 - same no vent design.
  • Synthetic Lubed - Shell Omala S4 WE 320 synthetic lubricated for maintenance free life.

Features:

  • Fin Free Italian design, die-casting, and manufacture.
  • Paint Free - high quality pressure die-casting assuring strength & leak free.
  • Timken® Tapered roller bearings on worm and worm wheel for ultimate strength & L10 life.
  • Double Lip BUNA-N rubber encased oil seals on fully ground output bore for zero leak seal
  • Single Lip Dupont® Viton encased oil seal on input worm shaft.
  • Advanced Modular Italian Design - Add feature for US Assembly.
    • Output Flanges in three different forms, F1, F2, F3
    • UniShaft - Single or Double Extended 25mm output shafts with all hardware & keys to make Left, Right, or Double solid output shaft form.
    • TA63 Torque Arm with Bushing Kit.
    • Non-Drive Shaft Protection Kit - Cover output on side not coupled to load, protect from corrosion while adding safety.
    • Input Motor Adapter Flange for IEC 71, 80, 90 with B14 or B5 form.
    • High Performance 3º angular misalignment & 2mm axial fully crown steel gear coupling with nylon shock dampening sleeve to couple motor.
    • USDA H1 Food Grade Synthetic Lubricant.
    • USDA Approved Steel-It® White, Gray, or Steel 316L stainless steel impregnated polyurethane paint.
    • Stainless Steel fasteners
    • Integral 4:1 Helical Pre-stage to create:
      • HA Shaft Input
      • HF Motor Adapter & Coupling.
      • Form base ratio x 4. i.e. 50:1 x 4:1 = 200:1.
