X - K 63 Output Flange Kits

TVT® Tramec Modular Output Flange Kits

• Fits Size 63 X or K series Worm-Gear Speed Reducers from Tramec
  • Also suitable for Motovario® NMRV, NRV, and other Universal worm gears.
• Die-Cast Aluminum alloy - designed, tooled, and machined in Italy.
• Three Sizes

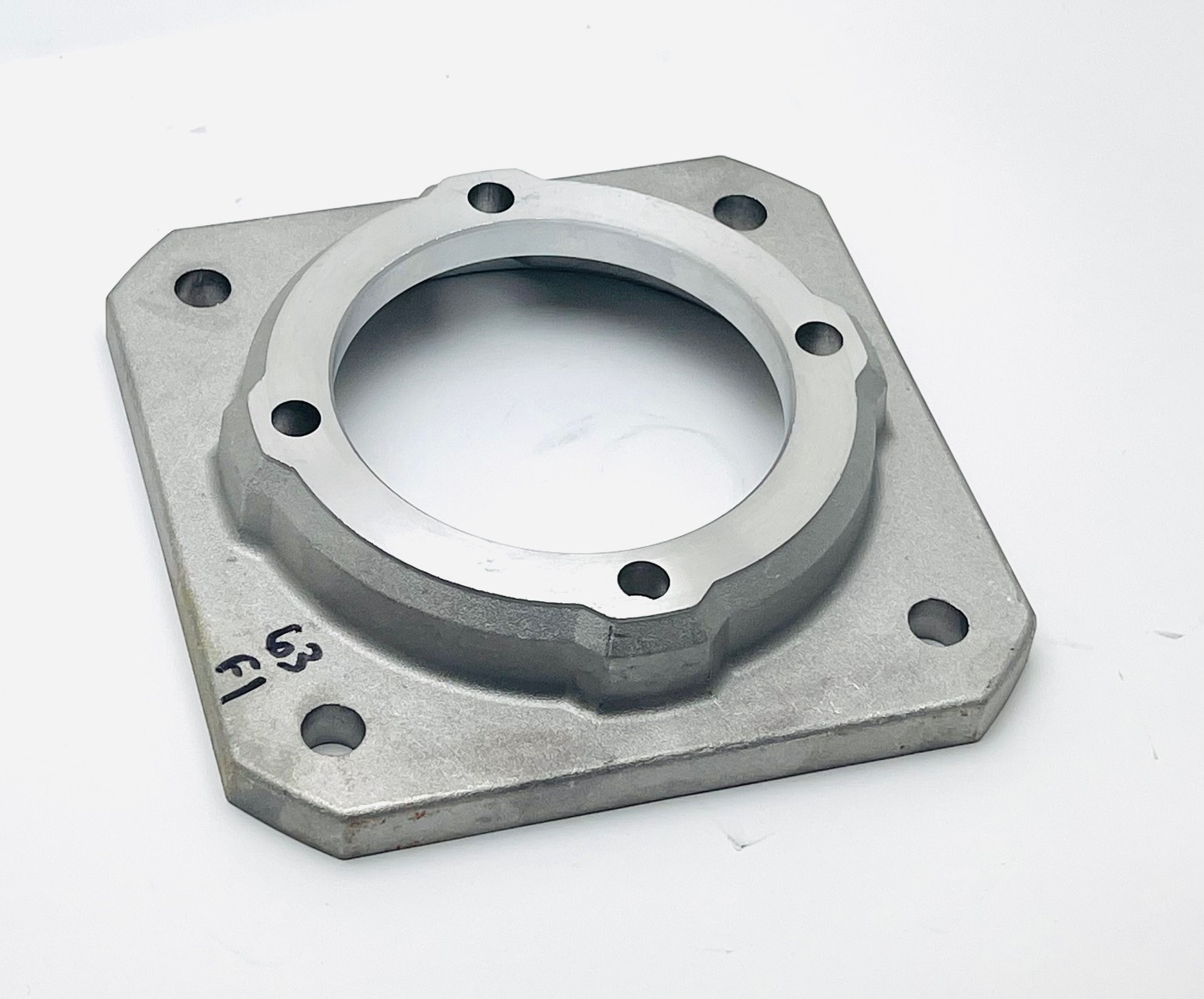

  • F1 - 115mm pilot, 82mm face of flange to center of worm, 150mm mounting bolt pattern diameter (11mm diameter through holes)

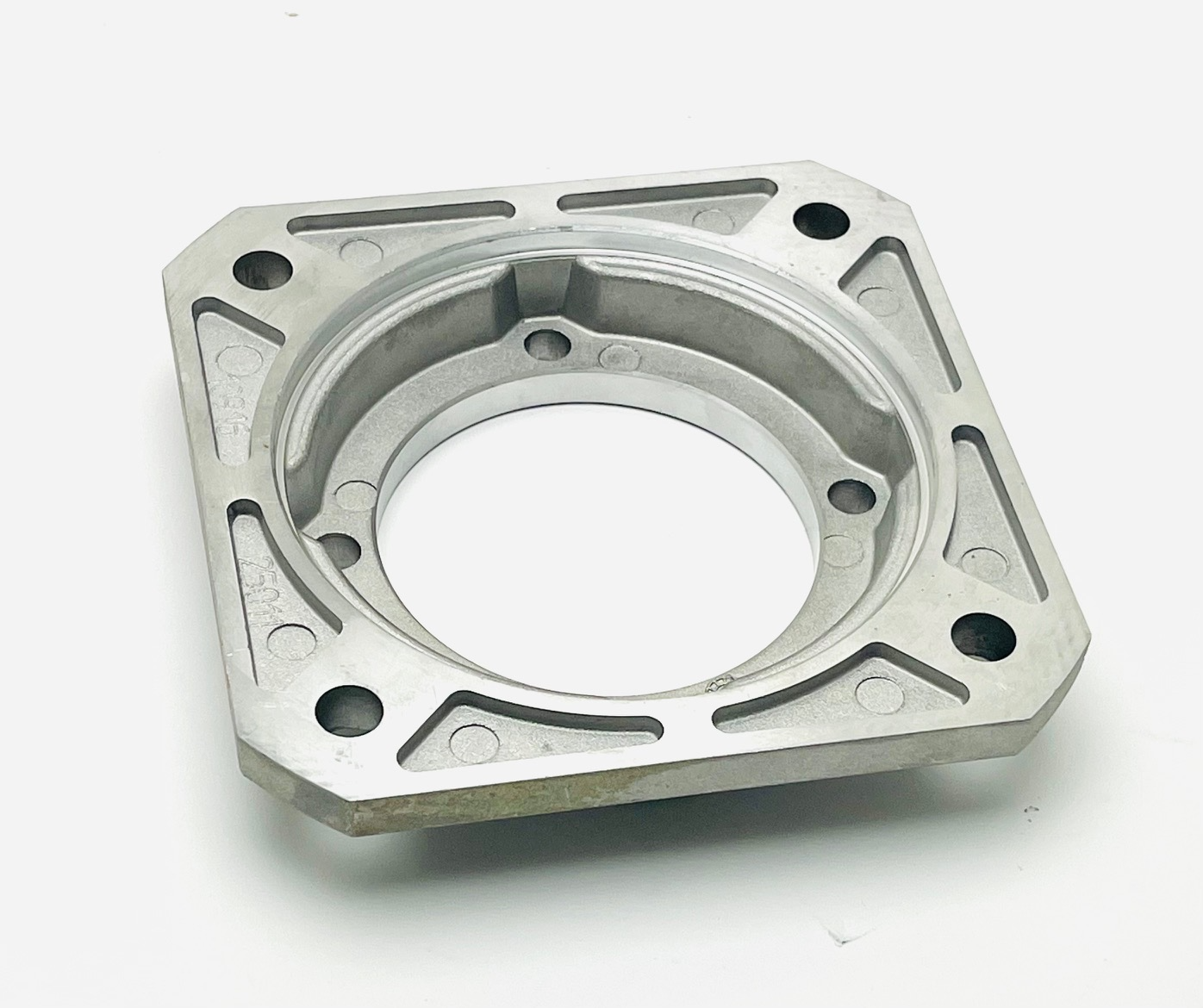

  • F2 - 115mm pilot, 112mm face of flange to center of worm, 150mm mounting bolt pattern diameter (11mm diameter through holes)

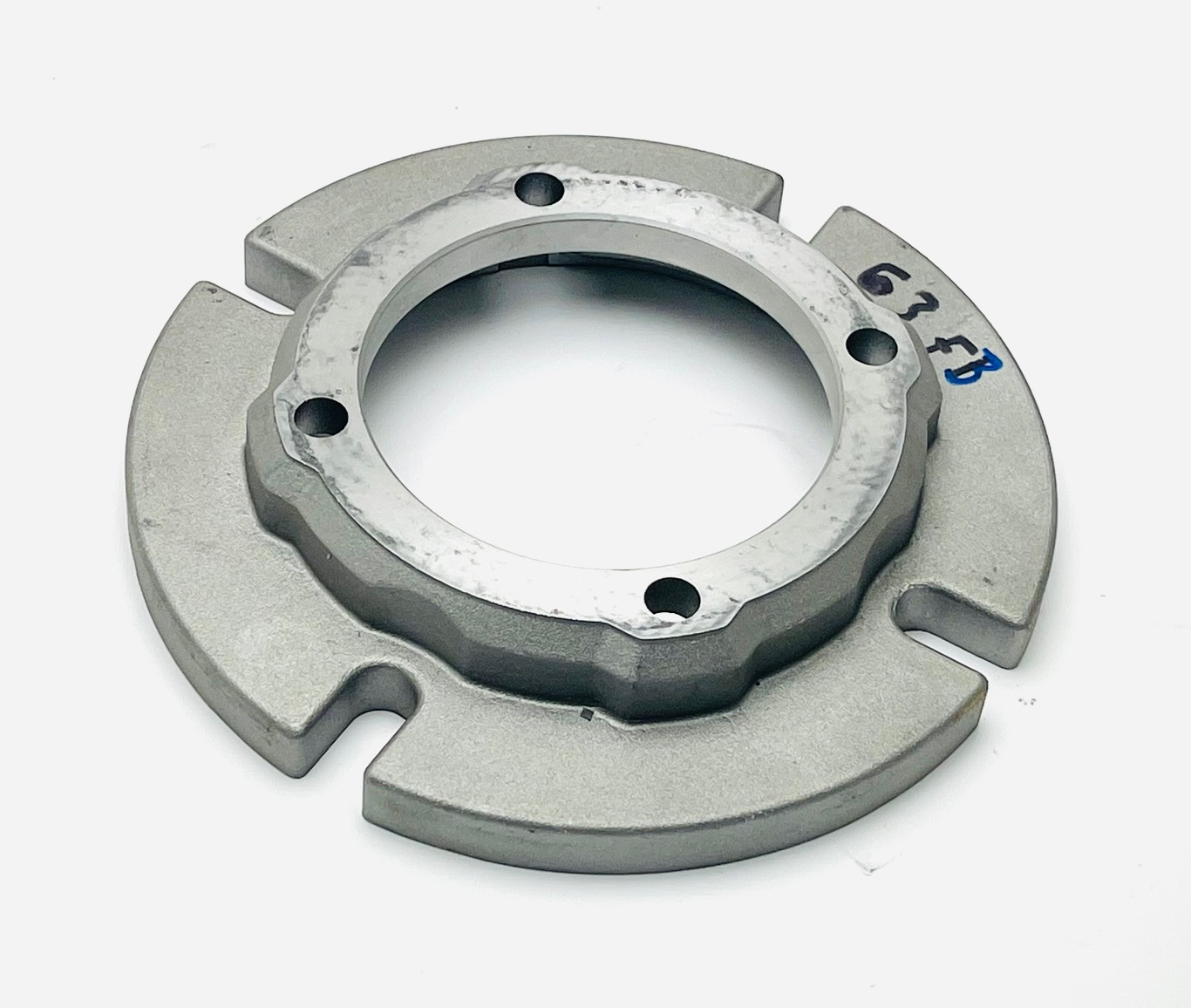

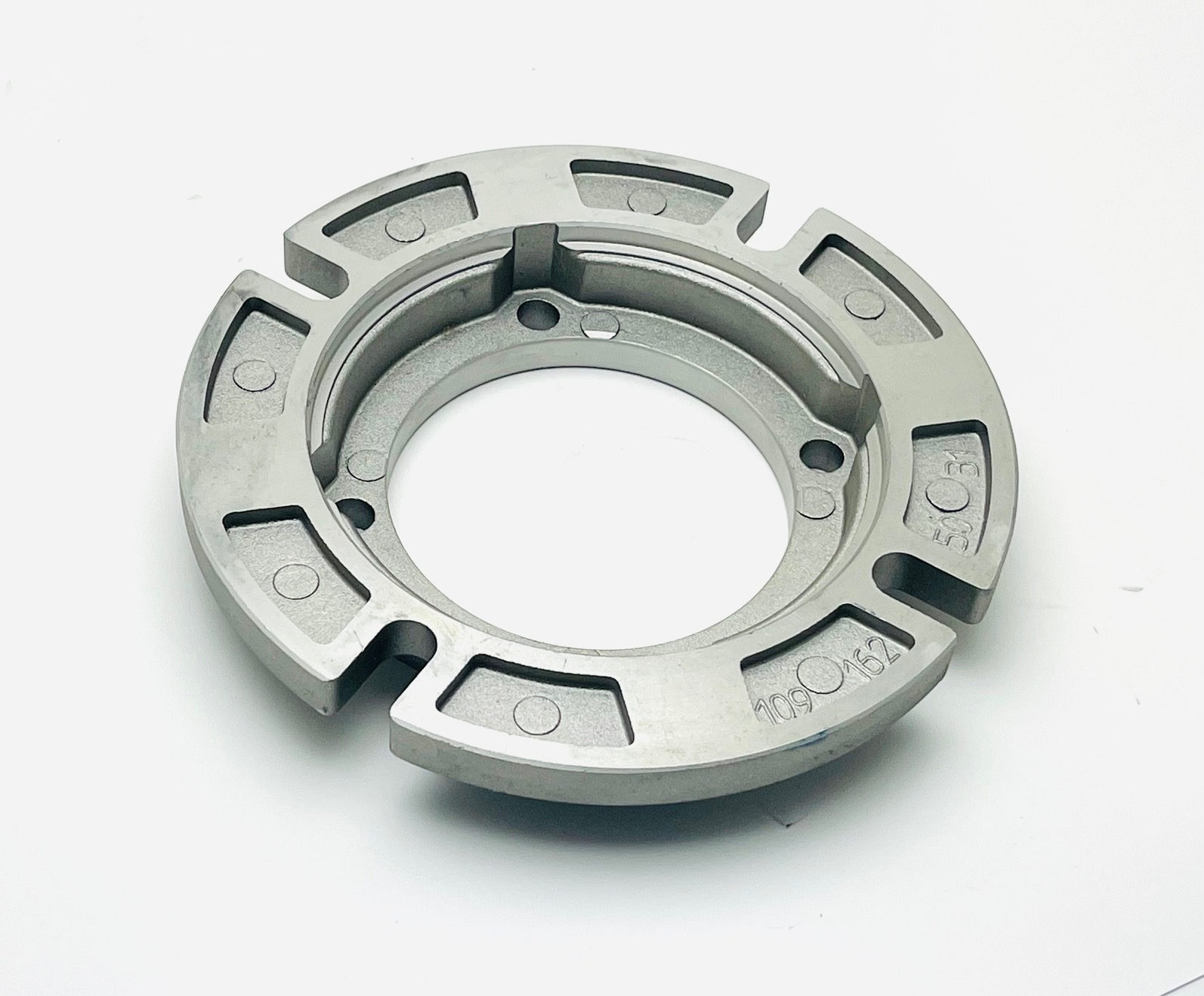

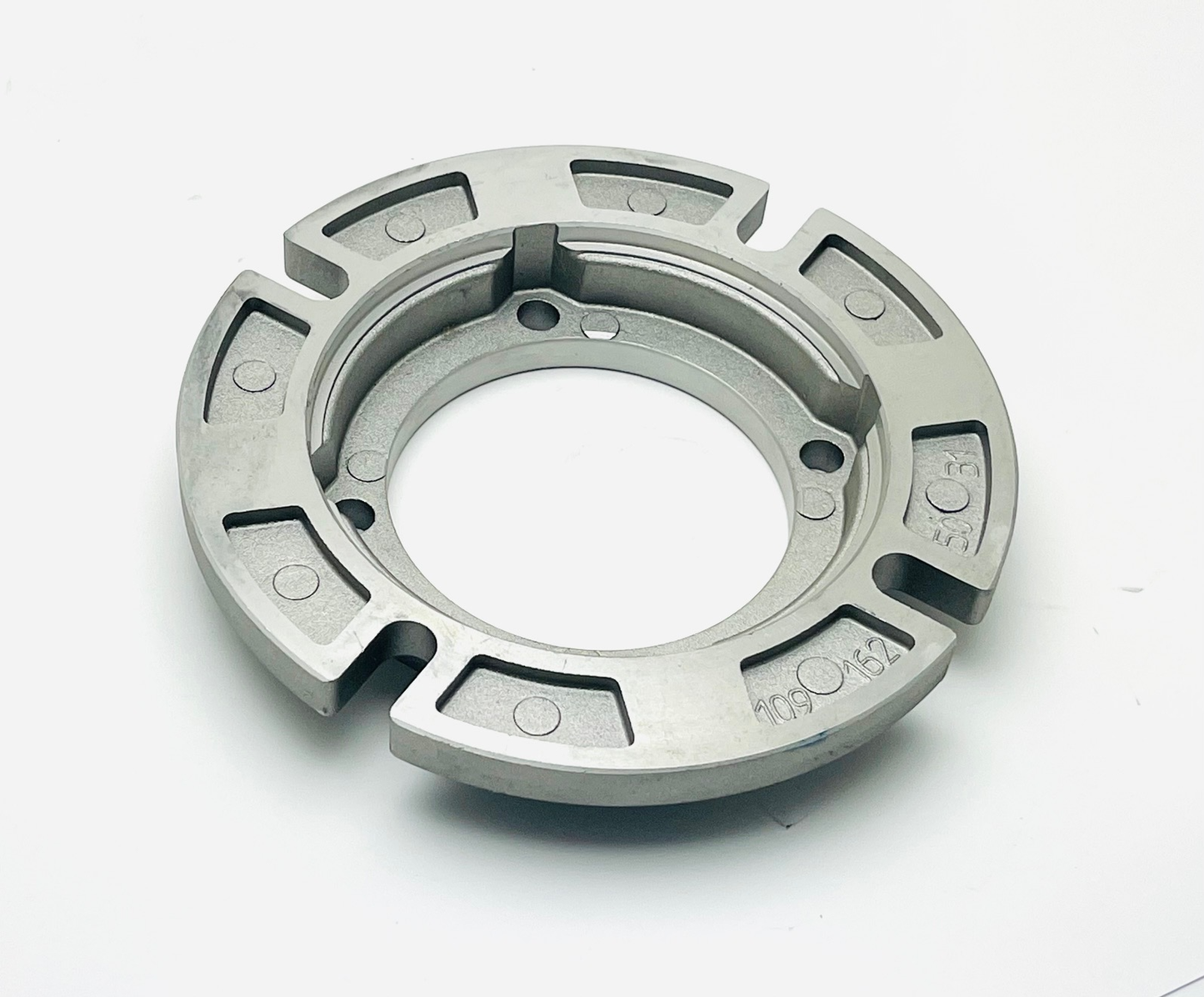

  • F3 - 110mm pilot, 80.5mm face of flange to center of worm, 130mm mounting bolt pattern diameter (11mm diameter through holes).
• Can be mounted on left or right of modular worm gear.
• complete with 4 M8x20 stainless steel cap-screw fasteners.
  • Note F2 not shown (photo coming soon).

Dimensions page for review (download PDF in new window).  Cad files available upon request, contact sales@tvtamerica.com for assistance.
