Tramec S.r.l.

Code: 2162605001

Suffex: 16a001

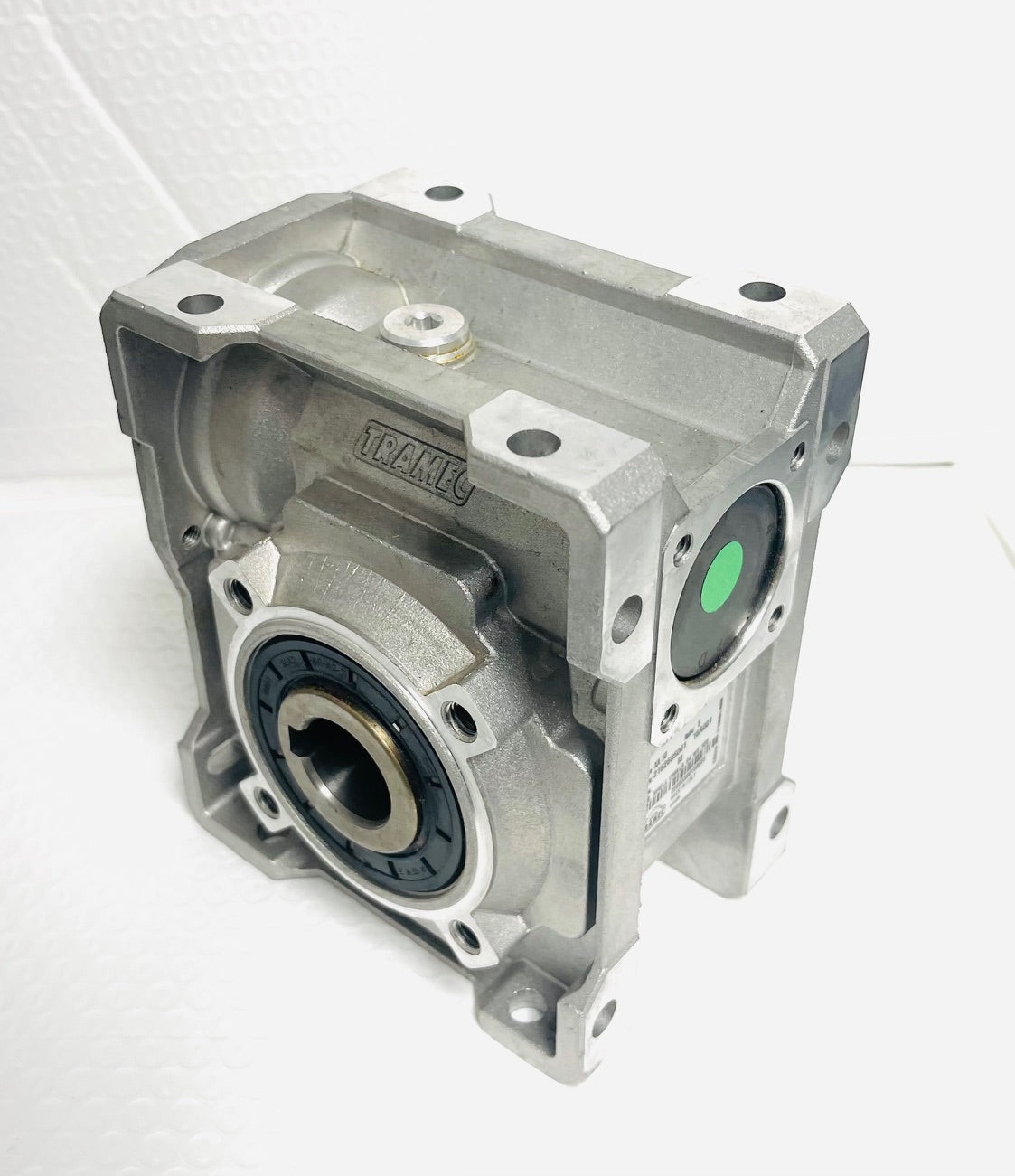

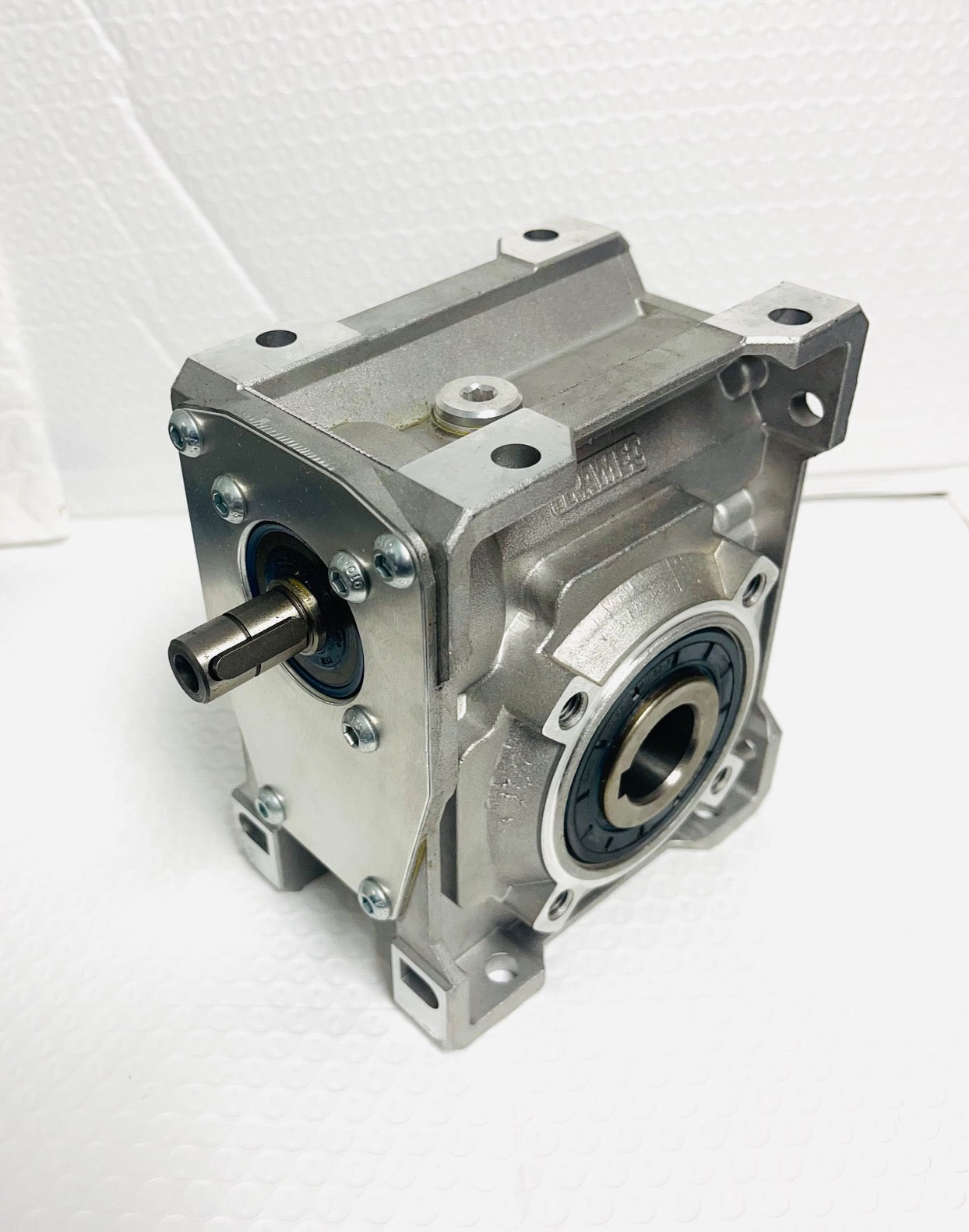

• X series Universal Worm & Gear Reducer
• Input: A - Solid shaft 14mm diameter x 25mm long.  With M5x13 tapped end & 5mm feather key seated.
• Size: 50mm - center of worm to center of gear wheel.
• Ratio: 1/5  - 5 input for 1 output rotation
• Output: D2:25mm Hollow Bore to H7 tolerance. with 8mm wide key slot.
• Orientation: B3 - Horizontal input & output, worm over gear.
• Lubrication: Shell Omala S4 WE 320 Synthetic gear oil - maintenance free for life.
• Housing: "X" form fin & paint free die-cast aluminum.  Drop-in for older NRV & NMRV type.
• 100% Designed, Machined and assembled in Italy with Italian forgings & castings.

PDF Spec Sheet (download in new window)

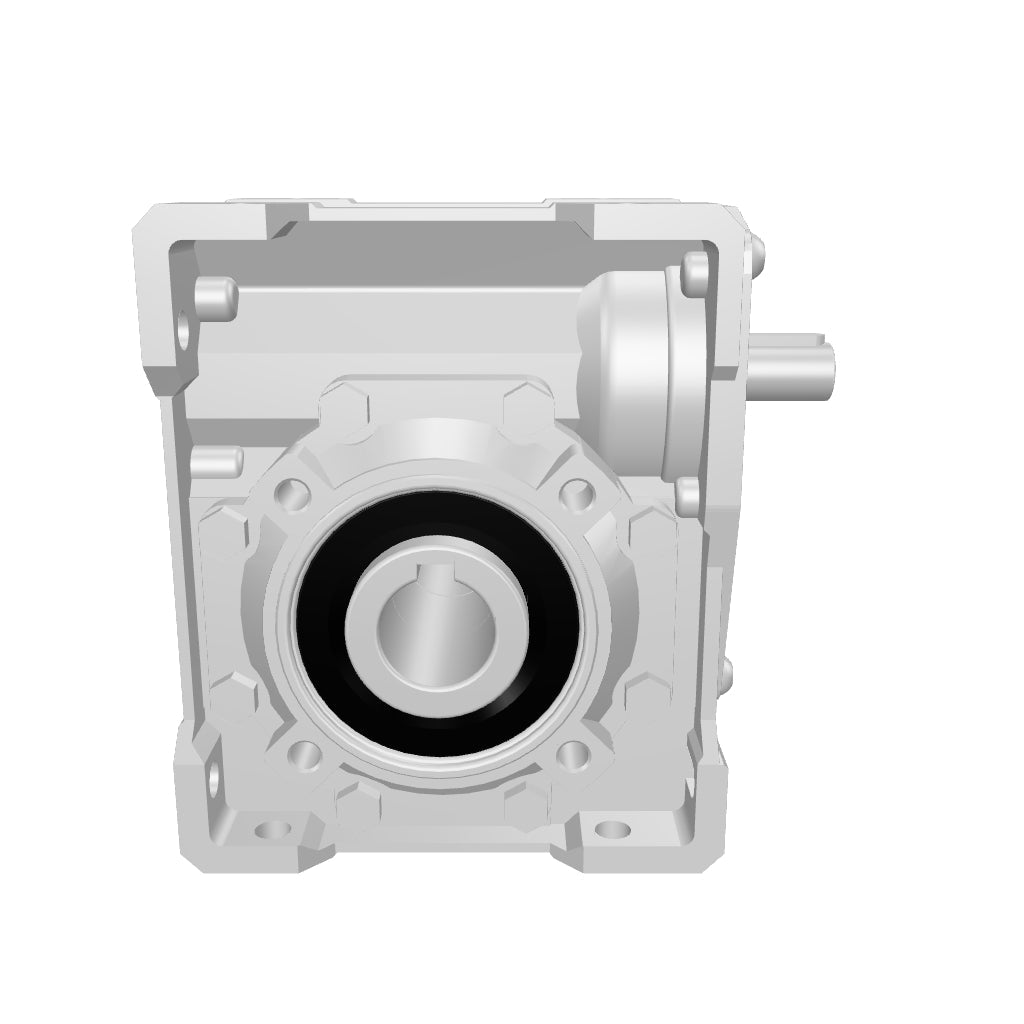

3D CAD File: (download in new window)
