Z (10x6mm) pitch Normal V-Belts

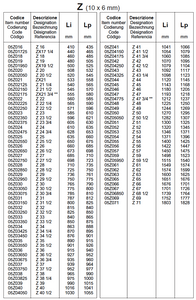

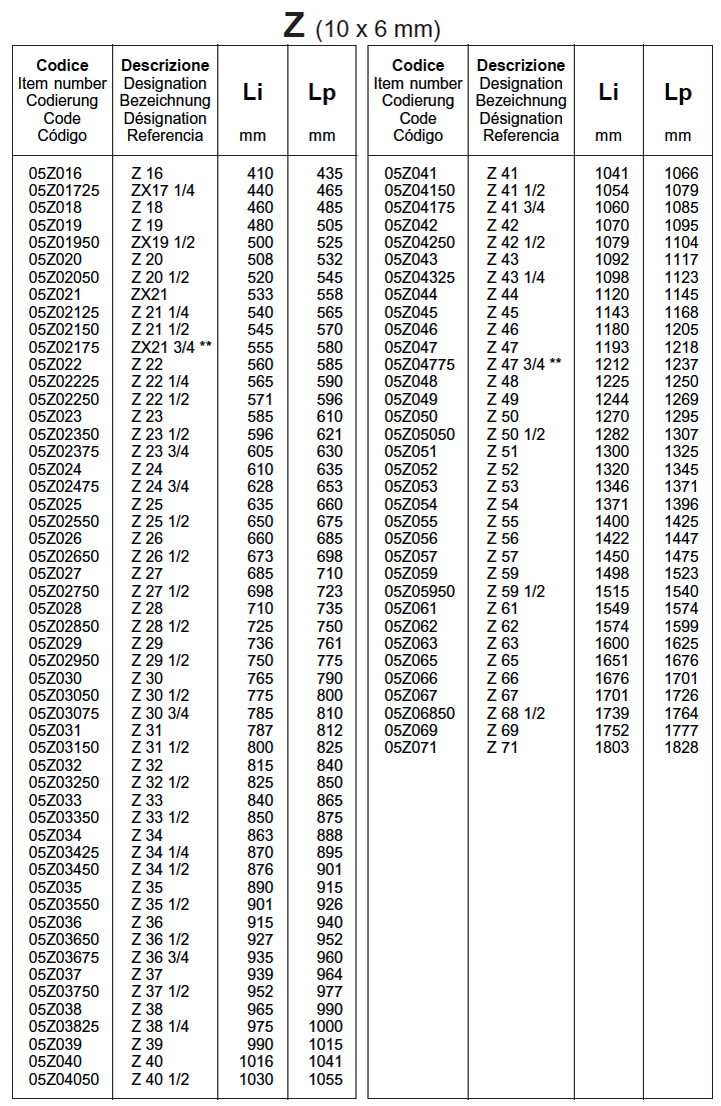

Z Pitch which is 10mm wide by 6mm deep are sold by pitch length in Inches as standard.   So item Z-18 is a 10mm wide beth with a 18" pitch length.

TVT-Poggi® Normal® V-belts are produced from optimum materials of the highest quality to be:

• High Performance
• Stretch Proof - length stable regardless of belt age.
• Antistatic
• Resistant to Oil
• To DIN and RMA Specifications

Our belts are suitable to operate in a wide temperature range, -10ºC to +80ºC.

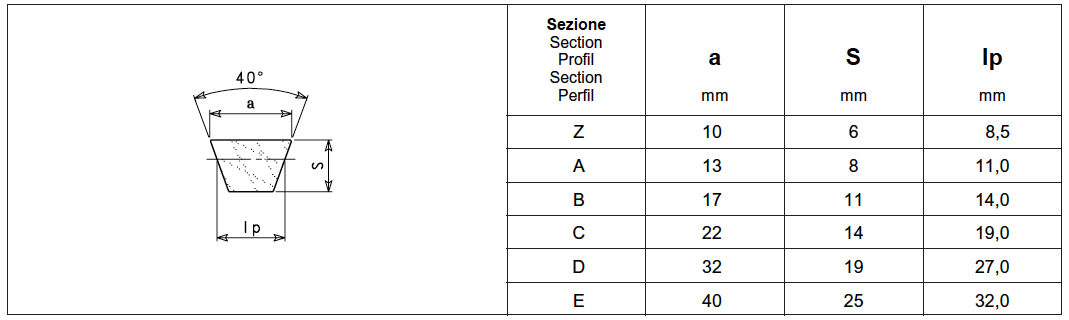

For Li (Lughezza interna) inside Length, or Lp (Lughezza primitiva) pitch Length. Please visit catalog for exact specifications.

Full Poggi V-Belt Pulley & Belt Catalog can be Downloaded HERE and will open in a new window.
