O.E.G. FRENO MLCC

Compact Brake for Electric Motors

• Stocked in 103Vdc, 178Vdc, other voltages available by request.

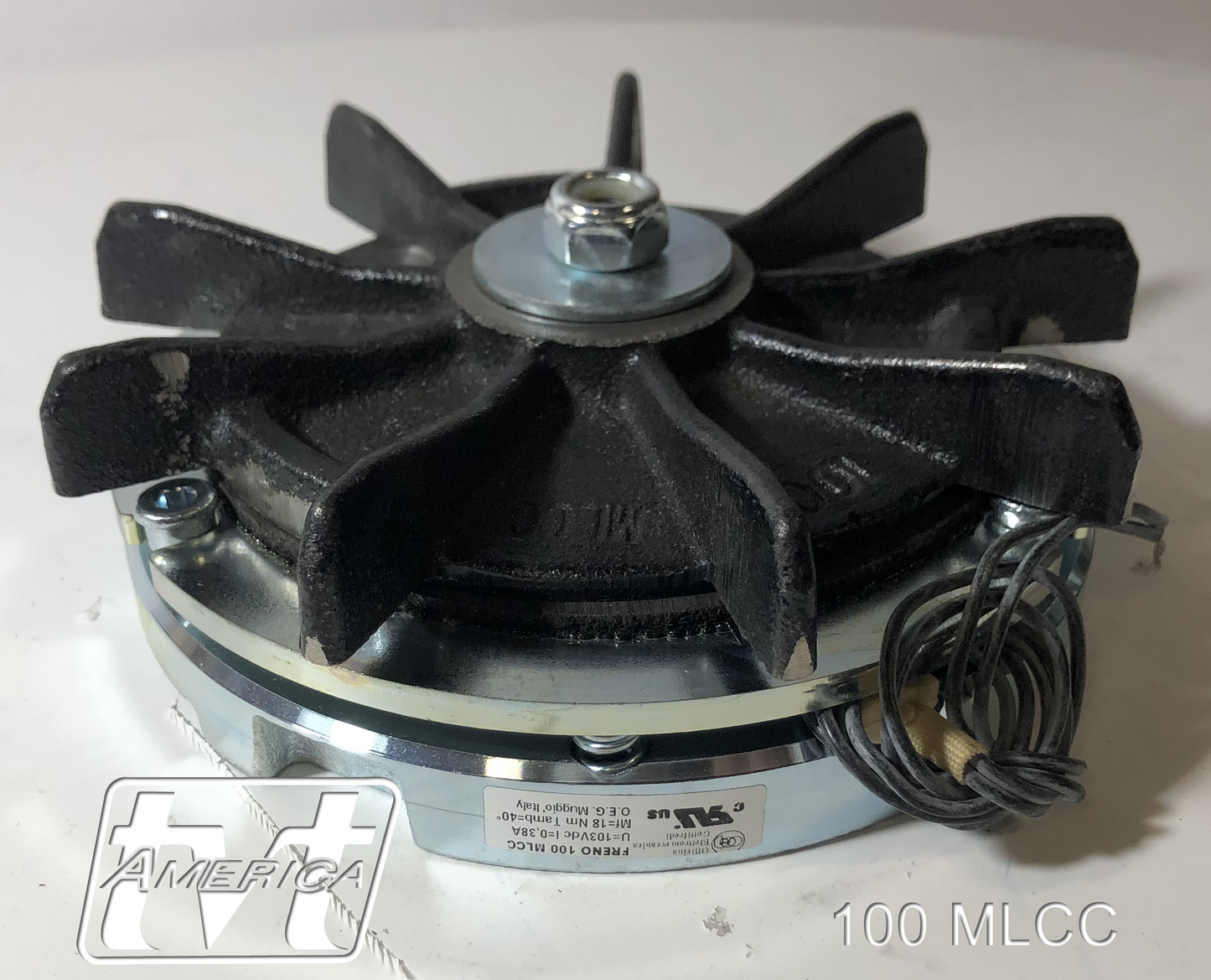

• Sizes 63, 71, 80, 90, and 100 available from stock.
• From 3Nm to 60Nm stopping torque (based on size).
• Spring Applied Safety Brake (SAB) type.
• Service S1 Continuous Duty Standard
• Insulation Class F
• Watertight Coil
• Interchangeable physically with KV type power applied brakes.
• Chosen by leading motor manufactures for reliable & trouble free service.
• Manual Hand Release available on request.

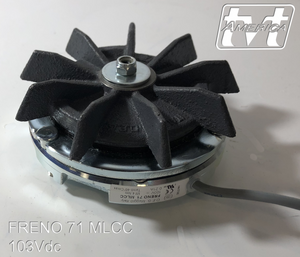

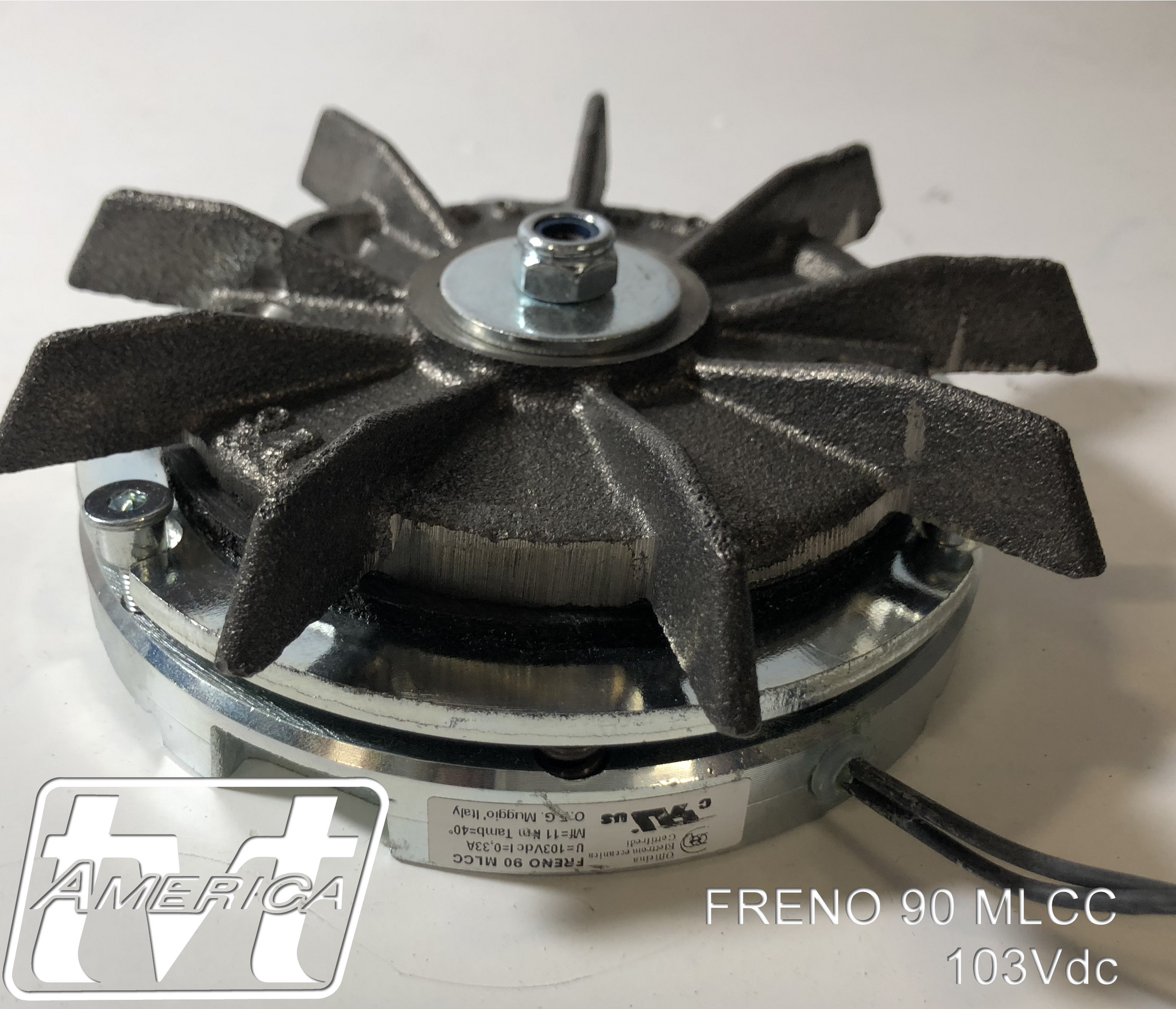

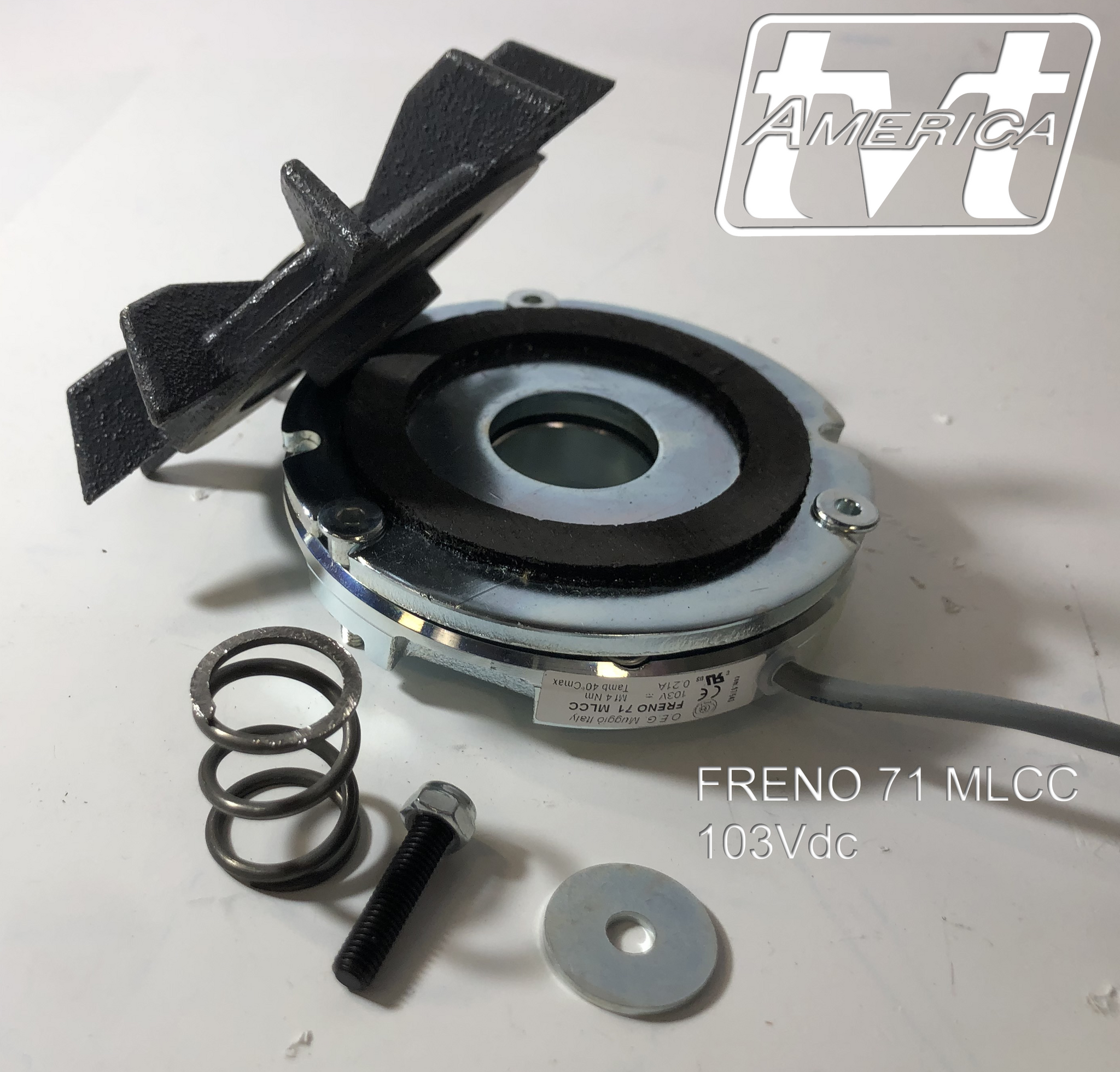

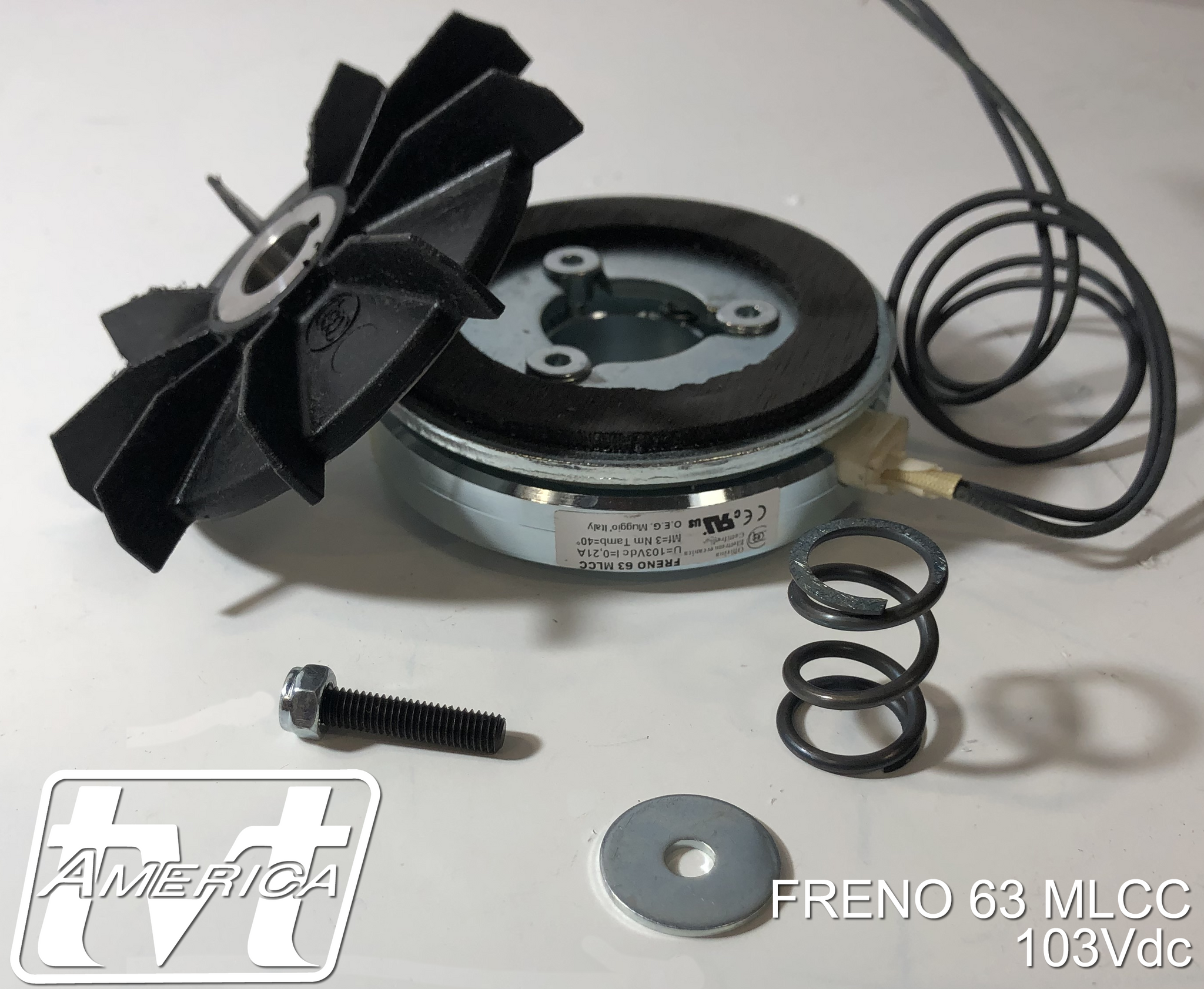

• NOTE all photos are of 103Vdc version that are STOCK.  178V is 2 weeks ARO.
• Genuine O.E.G. Rectifiers maybe purchased HERE.

Brochure PDF

Installation Manual PDF

Engineering Manual PDF
